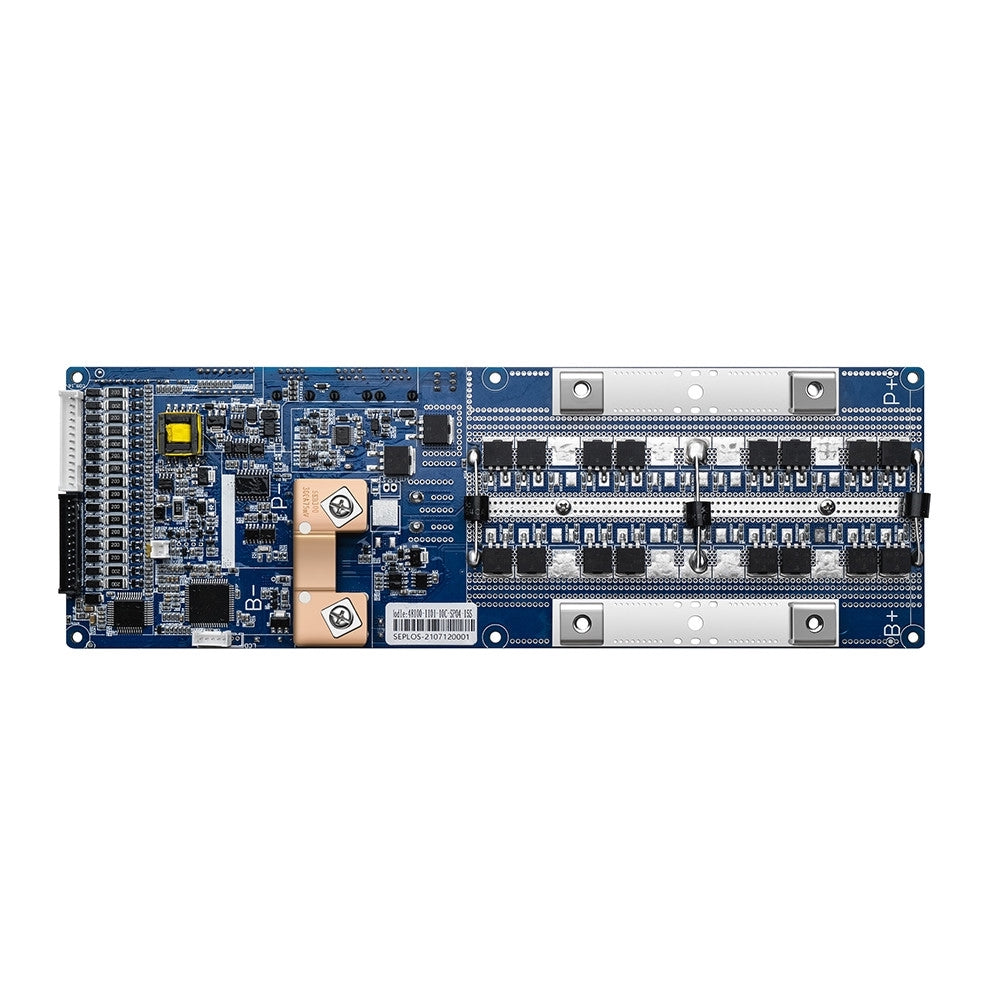

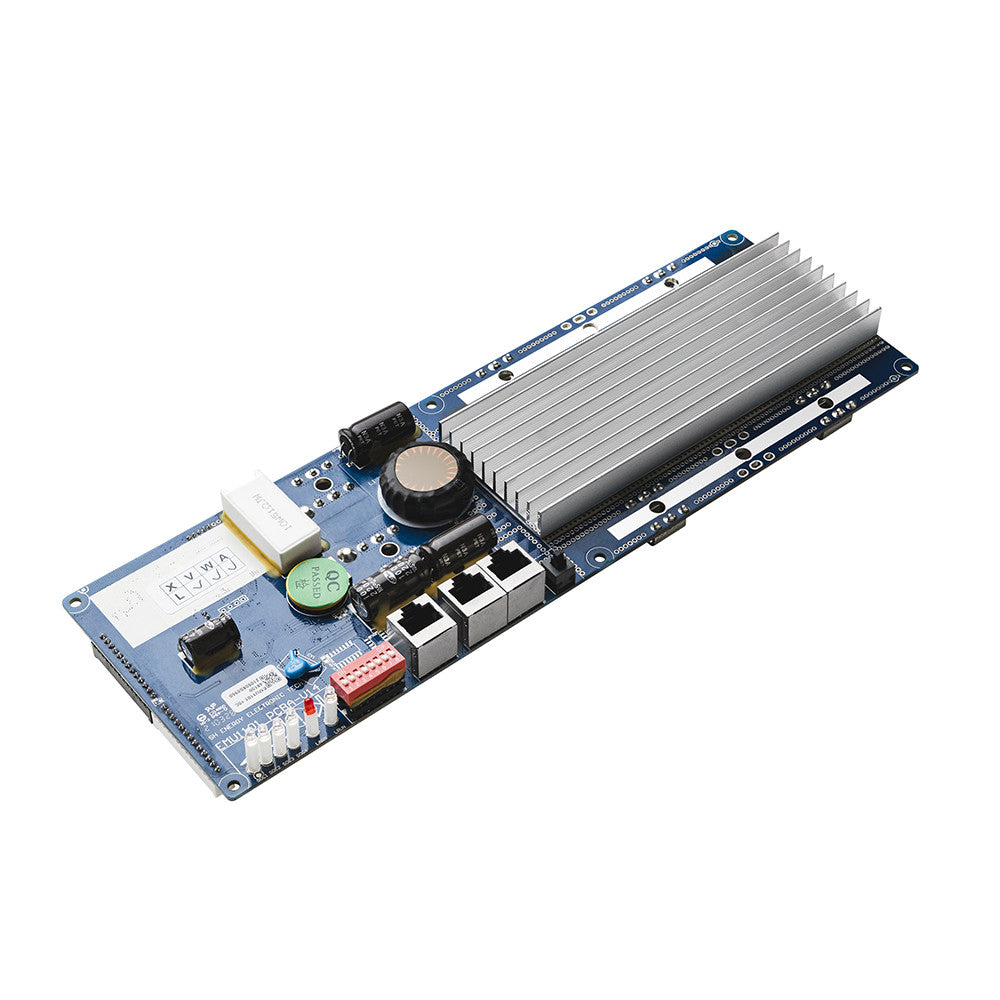

100A 150A 200A 8S 16S 24V 48V CAN/RS485 Lifepo4 Battery Seplos BMS Protection Board
100A 150A 200A 8S 16S 24V 48V CAN/RS485 Lifepo4 Battery Seplos BMS Protection Board
Specification
Battery type and serial number: LFP(8/16S)
Continuously charging/discharging current:100A/150A/200A
Communication protocol: accept CANBUS and RS485
Custom function: Heating function、External switch
Working temperature:-20℃-70℃
Pre-charging:0-3000ms
Current Balance: Passive balance:150mA(Max)
Power consumption: Working mode power consumption:<40mA
Sleeping mode power consumption:0 μA
Capacity protection: Nominal capacity:5-500Ah
Remaining capacity protection:5%
Short circuit protection lock: Continuously short in the output circuit
Short circuit protection lock times:5 times
Short circuit protection lock release: Connected with charger
Individual cell voltage protection:
Over voltage protection:3650mV
Under voltage protection:2700mV
Over voltage protection:57.6V
Under voltage protection:41.6V
Over current protection:110/160A/210A
Over current protection time delay:30mS
Passive current limiting:10A
Heating function Start:0℃/Stop:10℃
Size:300*100*30mm/260*80*25mm

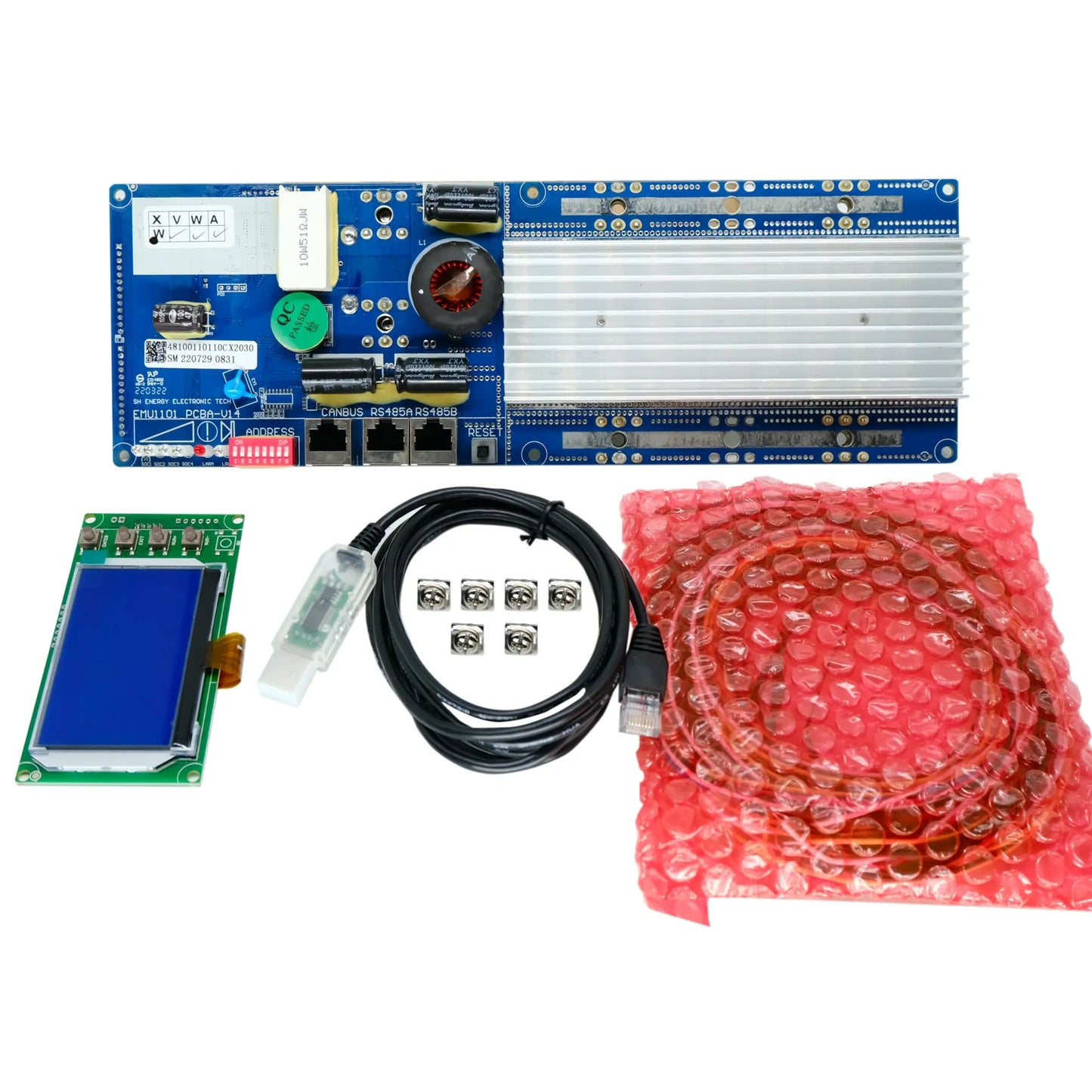

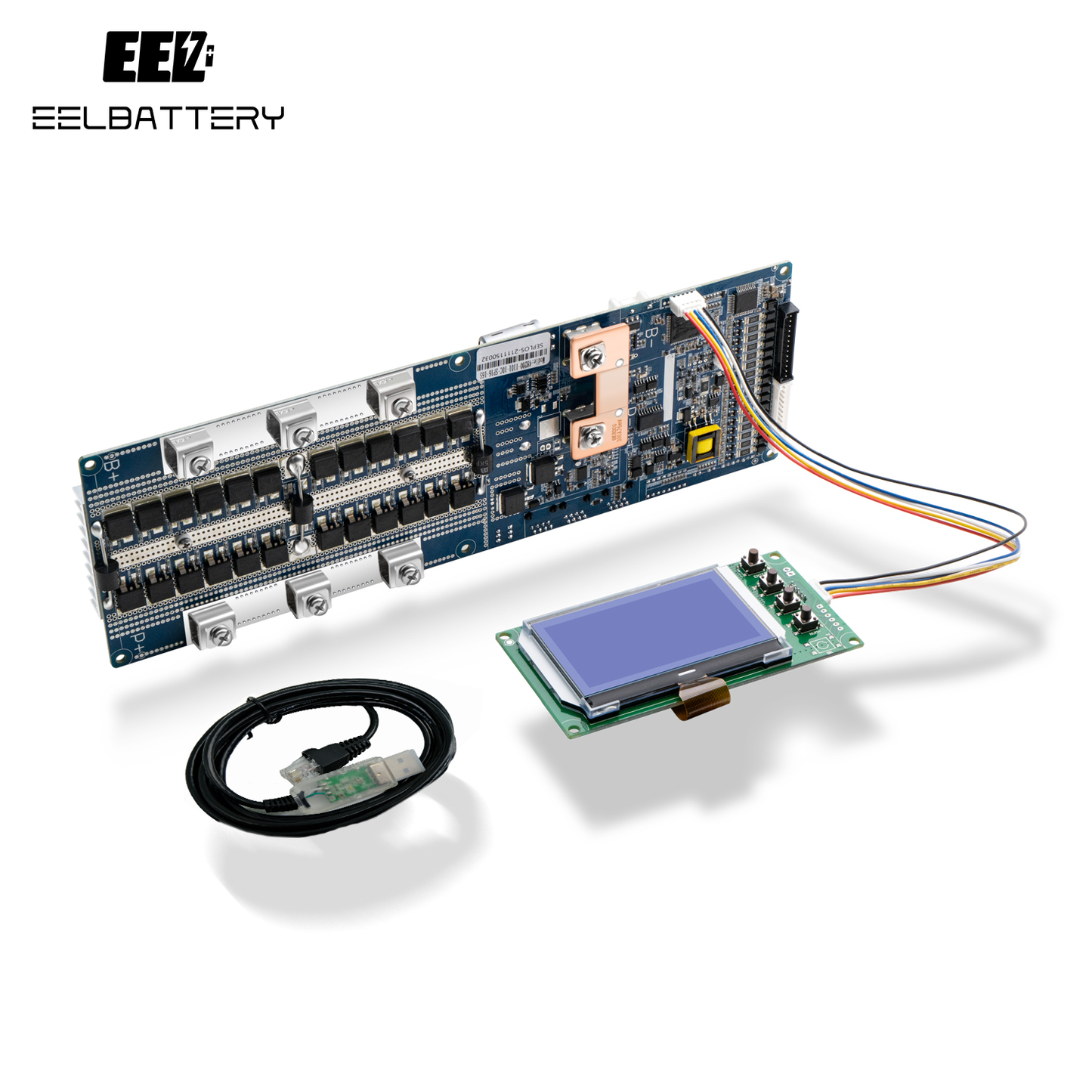

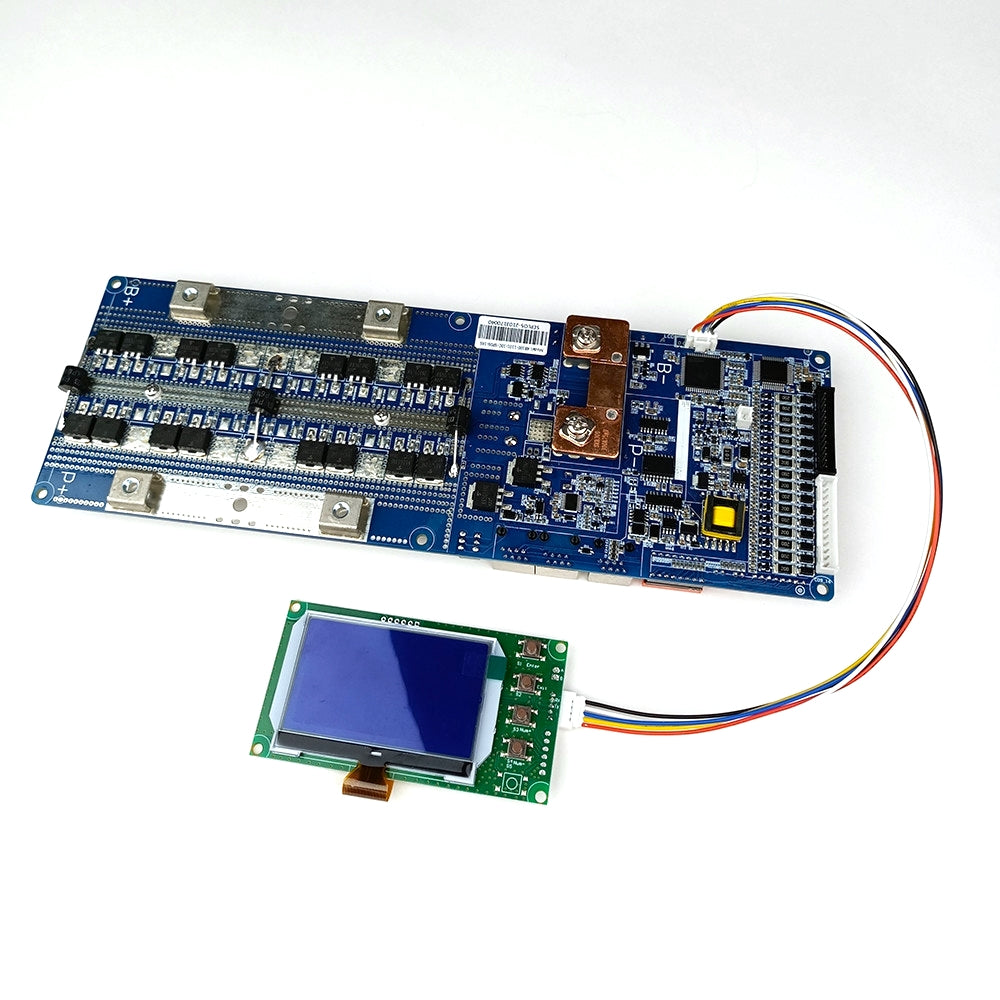

Package included:
1*BMS board
1*LCD display screen
2*Collection cable
1*Switch cable
1*Display cable
1*RS485-USB cable
serval screws and button caps.
DownLoad the BMS software:
https://drive.google.com/drive/folders/1BdpkjrWTS8rM7Ph8gk29n09wh8JujVtX
Bluetooth App(Android):
https://drive.google.com/file/d/1VkqUj50UKesQP7QZY3ZWnT9a0iyax6rt/view?usp=sharing
Bluetooth App(IOS): Search"EN BMS" in the AppStore
Materials
Materials
lithium ion phosphate,aluminum
Warranty
Warranty
5-Year Free Return Warranty
Share
Smart lithium lifepo4 battery module CANBUS/RS485 48v 16S 100A/150A/200A battery protection board Cell BMS LCD monitoring system
1. This smart bms with CANBUS/RS485 module is compatible with lifepo&lithium NCM battery pack.
2.BMS support CANBUS communication protocol and RS485 communication protocol.
3.Our BMS can support up to max 16 units in parallel operation.
4.The main functions are: CANBUS communication,RS485 communication,passive balance,individual cell over voltage protection,Over(under)voltage protection,temperature protect,over charge (discharge)protection, over current protection, Short circuit protection.
Compatible Inverters
-
CANBUS protocol is compatible with following inverters brand
The CANBUS communication board supports these brands of inverters,and our BMS has built-in CANBUS protocol of matching inverter brand, which can be automatically matched or manually switched:*Pylontech* Goodwe* Growatt SPF&SPH* Victron* LUX POWER* Sofar* DEYE* Studer* MUST* TBB POWER* SOLIS* SMAIf your inverter brand not in the list, please kindly ask the inverter supplier to provide the protocol to define. And send protocol to us, we'll help to solve it.
-
RS485 protocol is compatible with following inverters brand
Now our CANBUS communication board supports these brands of inverters,and our BMS has built-in CANBUS protocol of matchinginverter brand, which can be automatically matched or manually switched:*Pylontech*Voltronic power*Growatt-SPF*SRNE
