EEL BATTERY

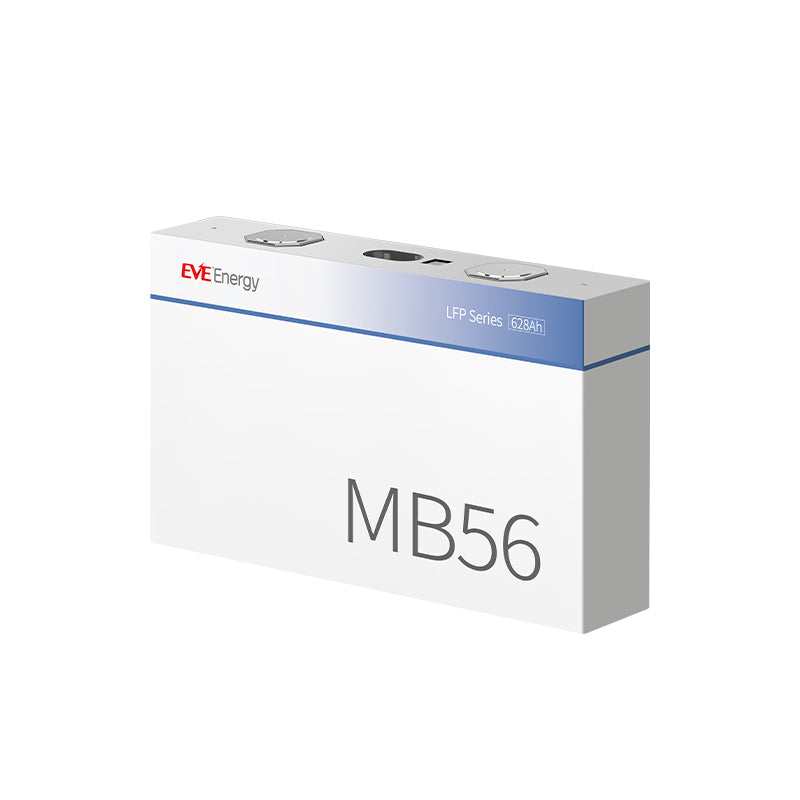

4PCS 3.2V 628Ah EVE MB56 with Double-thread Studs Grade A LiFePO4 Battery Cells Full Capacity China Shipping

$689.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Terminal Type M6 studs

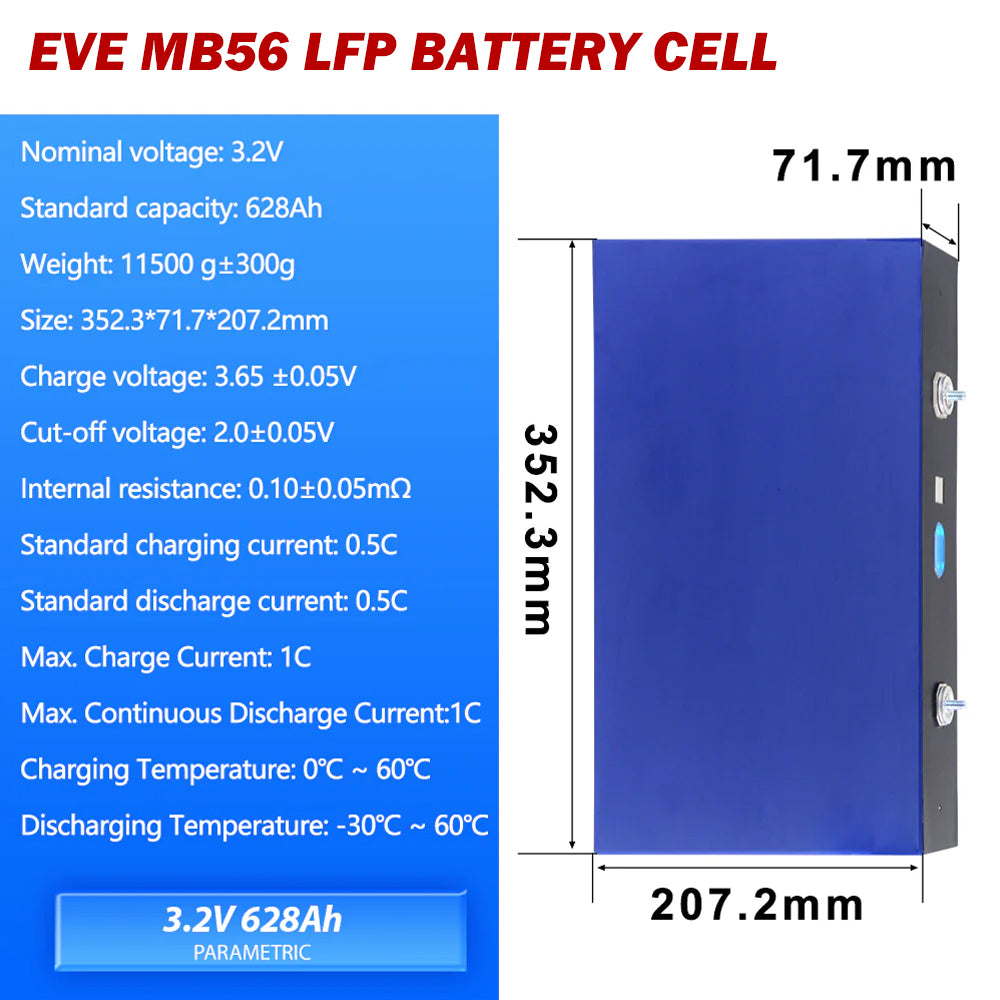

Specifications

(EVE MB56 with EVE original double hole new studs)

Lithium iron phosphate battery cell

Shell Material: Aluminium

Rated capacity:628Ah per cell

Maximum capacity:>628Ah per cell

Internal impedance:0.1~0.3mΩ

Nominal voltage:3.2V

Dimensions(L*W*H):mm

Weight:10.22±0.2kg

End-of-Discharge Voltage:2.5V

Max voltage:3.65V

Max Continuous Discharge Current Rate: 0.5C

Cycle life (80%DOD):8000

Charging Temperature:-5~60°C

Discharging Temperature:-30~60°C

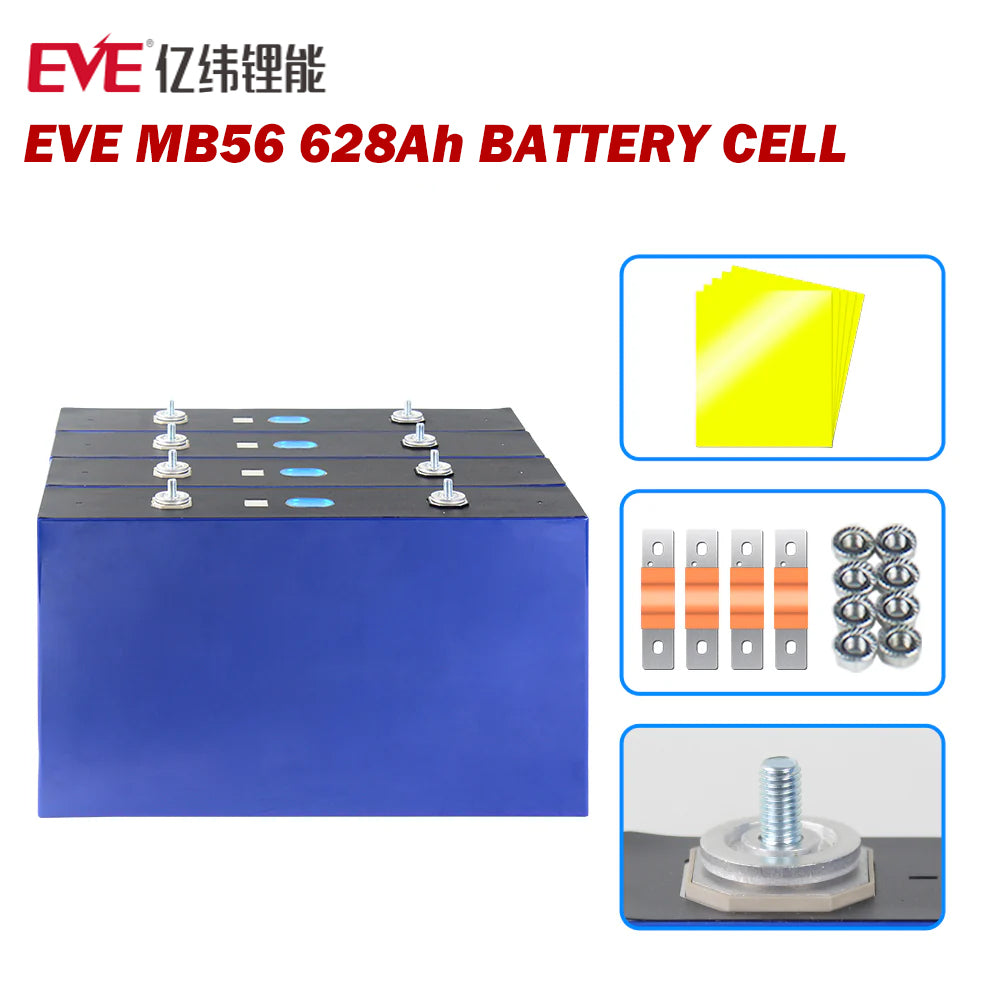

What's in the Box

4*EVE MB56 Lifepo4 Battery Cells

4*Flexible Bus Bars & Screws

Well-protected carton box with thick foam

Test Report

Free sea shipping from China warehouse(40-50 working days Delivery)

Dimensions

(L*W*H):173.6*71.5*204.8 mm

(L*W*H):6.8*2.8*8.1 Inch

Warranty

5-Year warranty,3-Year Free Replacement

View full details

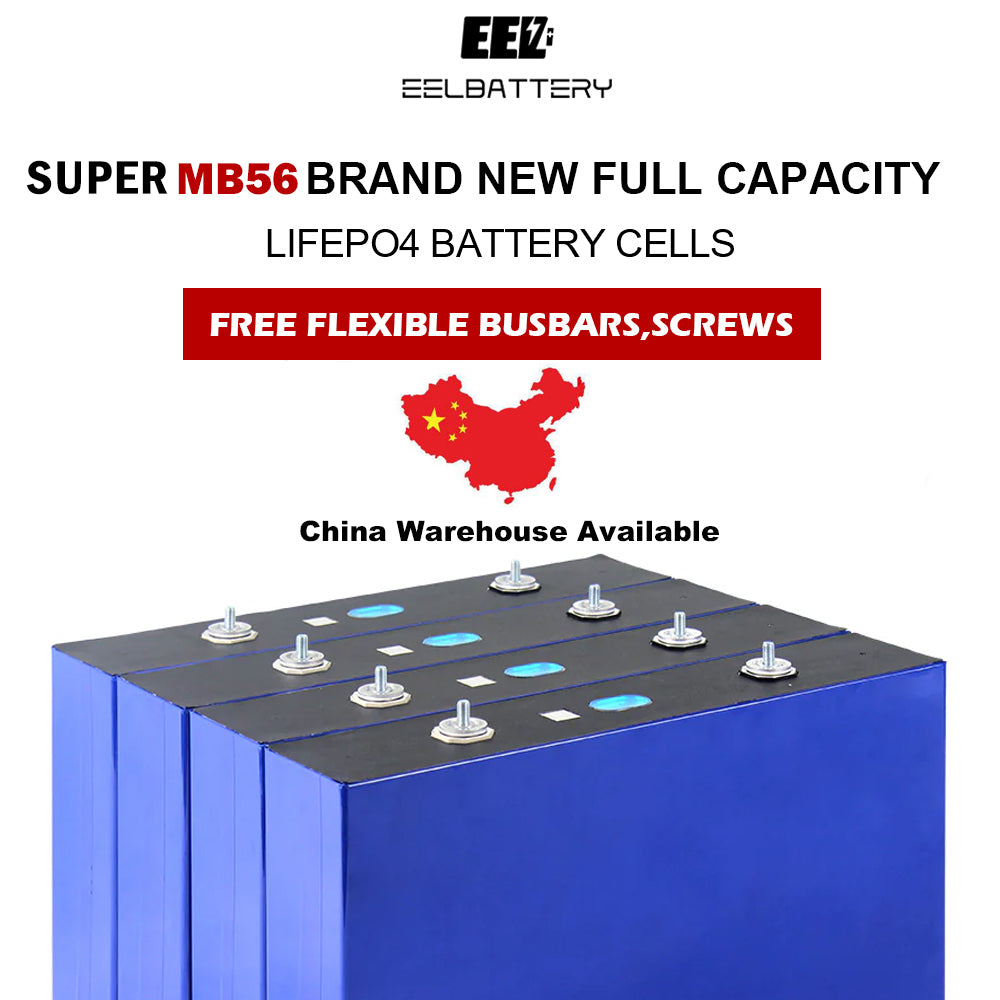

Brand New, Tested and Matched. Laser-welded studs, larger capacity with free bus bars included.

Discover the power and potential of our 3.2V EVE LiFePO4 Battery Cells. Made from high-grade, top of the line materials and boasting a full capacity,these cells are sure to make a powerful statement for your devices. Enjoy maximum efficiency and reliability, delivered with fast shipping. What are you waiting for? Unlock the possibilities!

Specification

48V DIY Battery Box

If you want to build a 48V 16S Battery System, you can consider our DIY battery box, with all the parts that are needed to build your own system in a very short time!

Please chat with us if you have any questions:)

Suitable for the new studs EVE280k/304/MB30/MB31

Check The Details

Don't Forget BMS

Active balance functionality, no need to lose the battery capacity to balance the voltage difference of cells, raise the battery usage efficiency for 95%

Has the protections of Over-charge/Over-discharge/Over-current and Short circuit Over-temperature protection etc...

Check BMS Details
