EEL BATTERY

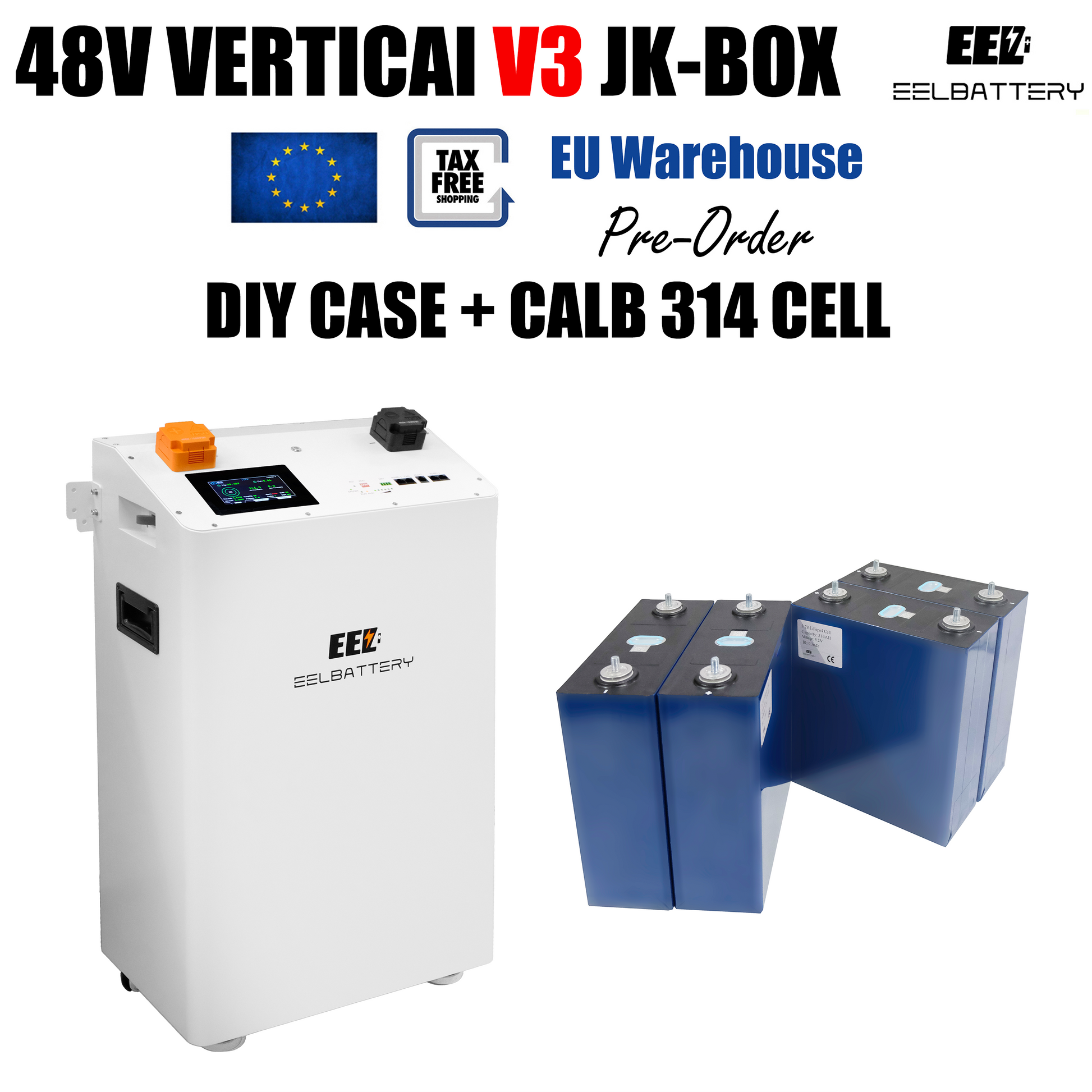

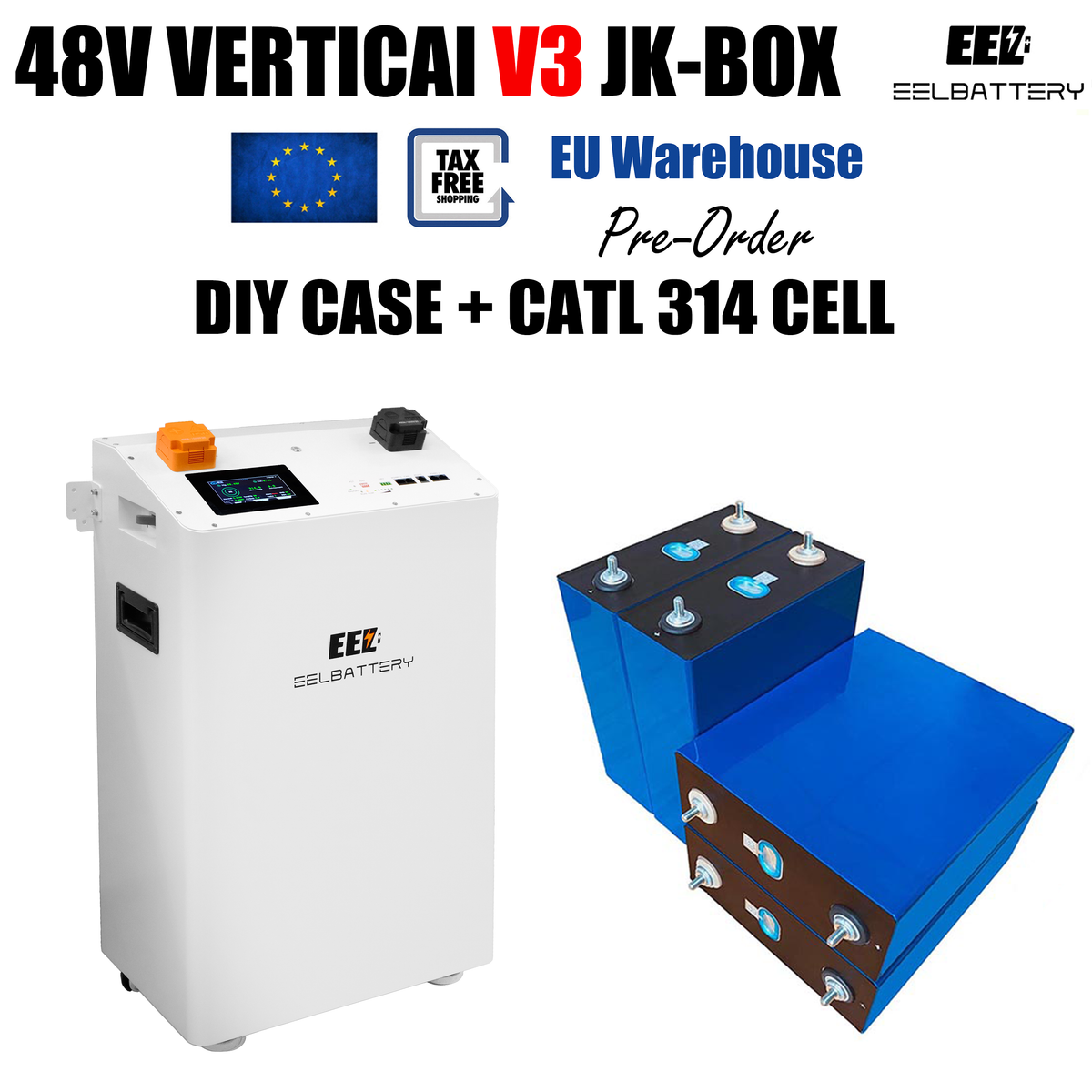

EU Stock-EEL 48V 16S DIY Vertical JK V3 Box DIY Battery Kits with JK V19 Inverter BMS and Wheels Free Shipping & Free Tax & With Cells

$1,599.99 USD

Akciós Elfogyott

Tartalmazza az adókat. A szállítási költséget a megrendeléskor számítjuk ki.

Package With CATL 280AH(300Ah) Grade A+(15kWh) With EVE LF280K(300Ah) Grade A+(15kWh) With CALB 314AH(314Ah) Grade A+(16kWh) With EVE MB31(330Ah) Grade A+(17kWh) With EVE MB31(330Ah) M6 Grade A+(17kWh) Only Case

BMS 200A V19 JK BMS 200A V19 JK BMS with heating pads

Safety Built from the Core Up

Multi-Layer Voltage Protection

Each cell is tracked in real time with ±20 mV precision, delivering over twice the accuracy of conventional systems. This ensures consistent voltage balance and longer cell lifespan.

All-Around Thermal Protection

Integrated with 6 smart temperature sensors — 4 for cells, 1 for ambient air, and 1 for MOS components — all accurate within ±2 °C.

Smart thermal control system

High-Temp Shield: Automatically pauses charging at 55 °C and gradually limits power at 50 °C to prevent stress on components.

Cold-Weather Mode: Activates internal heating below 0 °C, ensuring reliable discharge even in -20 °C environments.

Engineered Exterior Protection

Encased in a dust- and moisture-resistant IP20 shell, perfect for garages and basements.

Designed with fully enclosed terminals to eliminate accidental contact — certified for CE safety compliance.

Specification(Battery Vertical JK V3 Box with wheels)

Battery Type:280/314/MB30/MB31/330Ah Cells
Material: Stainless Steel
Communication: CANBUS/RS485
BMS: 48V 16S 200A JK V19 BMS
Nominal Voltage:51.2V
Active Balance Current:2A
Warranty:5 Years
OEM/ODM: Available
Weight:29kg
Parallel Type:up to 14 batteries

Battery cell comparison

Brand	EVE	CATL	CALB
Grade	A	A	A
Actual test capacity	EVE314 ≥330AH	CATL280 ≥300AH	314AH-320AH
Cycle life（70%SOH）	8000	7000	8000
Calendar life	15 years	15 years	10 years
Technology	Top-Tier. EVE has a stellar reputation for quality control and product consistency, built over years in consumer electronics.	Energy density slightly higher than EVE, stable olivine structure. Robust safety with cooling features.	Solid & Proven. As a specialized LFP producer, their products are inherently safe (LFP chemistry) and are known for reliable performance in their target markets.
Reputation	Robust & Stable LFP: Focused on long life and reliability. LMFP upgrade offers higher voltage and ~15% more energy density than standard LFP.	Gold Standard. As the world's largest maker, their reputation is built on reliability and safety. Their cells undergo rigorous testing.	Standard, Optimized LFP: Focus is on achieving excellent cycle life, safety, and low cost through manufacturing efficiency, not necessarily cutting-edge density.
Production date	2025	2025	2024-2025
Warranty	10 years	10 years	10 years

Parts List:

1 * Battery Case (front case,1*back Bracket)
1* JK 4.3 inch LCD display with on/off switch
16 * Epoxy/EVA tapes board(Between cell and the case)
2 * PCB Board(with sheet copper wires) for BMS and Cells Connection+2*matched EVA Tape
2 * Handles+4*wheels
1* 250A Class T fuse+1*250A DC cicuit breaker
1 * 48V 16S JK inverter BMS+2*BMS wires+adapter
1 * LCD Screen+1*LCD Screen wire+4 * Button Cap
2 * Special Battery Terminals (P+ Terminal and P- Terminal)
3* Long Flexible busbars (BMS connection)
15 * Flexible busbars (Cell connection)
16* EVA Tape (Between cells)
Other Small Accessories

DownLoad the software:

https://drive.google.com/drive/folders/1BdpkjrWTS8rM7Ph8gk29n09wh8JujVtX?usp=sharing

Pre-sale:the battery box will be available to ship on November.15th
