EEL BATTERY
51,2 V 15 kWh EEL Server Rack LiFePO4 Akku Home Power Solar Energiespeichersystem
Verfügbarkeit für Abholungen konnte nicht geladen werden
Spezifikation
Normale Spannung: 51,2 V
Normale Kapazität: 230/280/310 Ah
Energiespeicher: 15.11./16 kWh
Seriell oder parallel: 16S1P

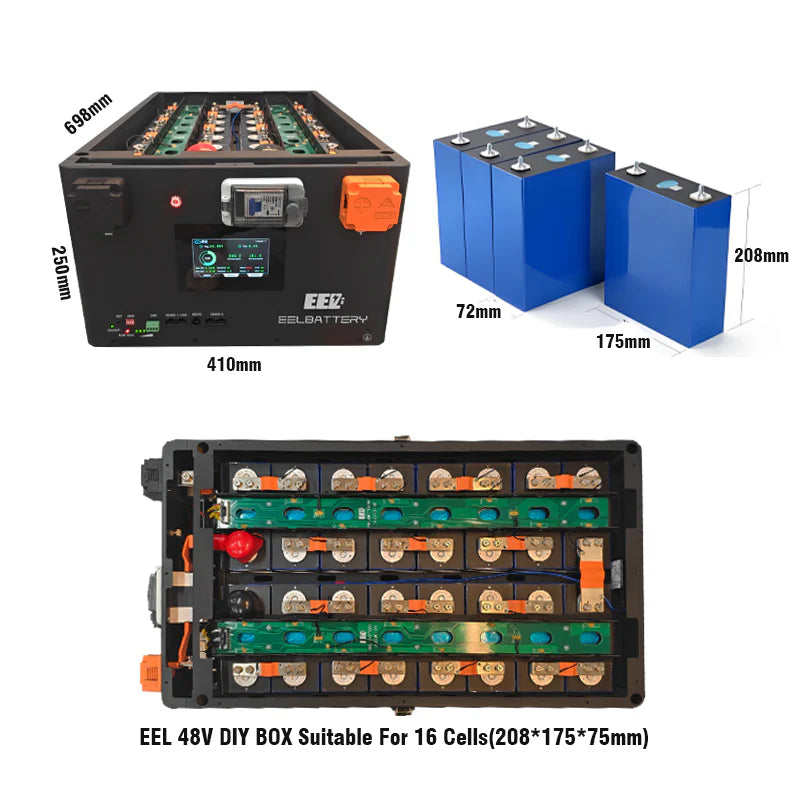

Größe: 41 x 68 x 26 cm
Integriertes BMS: 16S 200A Bluetooth BMS
Nettogewicht: 110/130/140 kg
Kommunikation: RS485/CANbus
Material: Lifepo4, Metall, Edelstahl
Ladestrom: 100–150 A
Maximaler Ladestrom: 200 A
Ladespannung: 56–57,6 V
BMS-Abschaltspannung: 57,6 V
Spannung wieder anschließen: 54,6 V
Batteriezellen in CATL/EvE HSEV-Leistungszellen der Klasse A

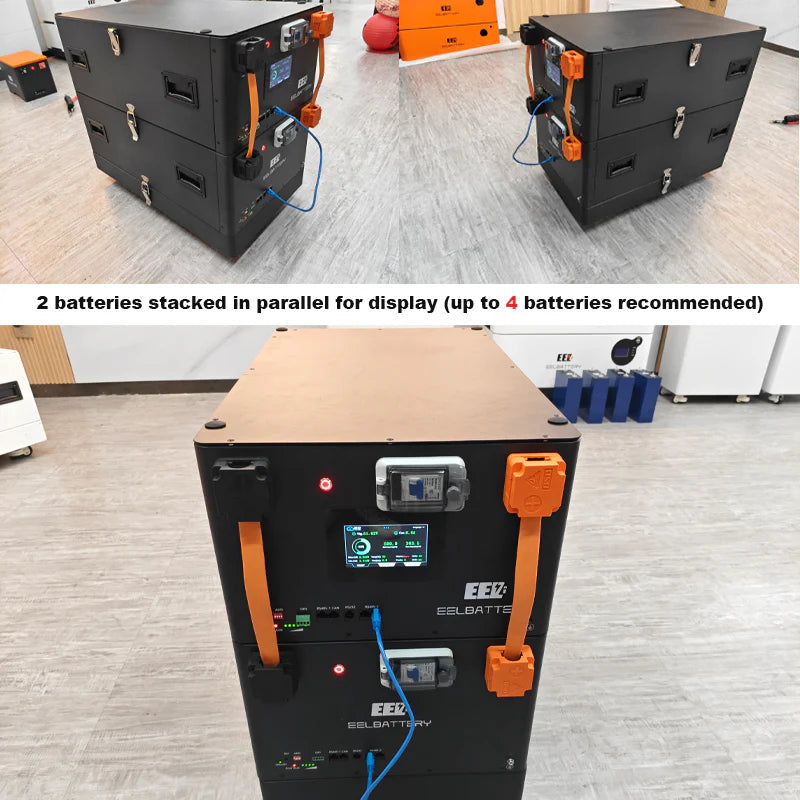

Stapelbarer Typ: bis zu 15 Batterien
Liste der Einzelteile
1 * EEL-Akku (vormontiert)
1 * Holzverpackungsbox
*Wir testen die Batterie vor dem Versand.
Laden Sie die Software herunter:
https://drive.google.com/drive/folders/1BdpkjrWTS8rM7Ph8gk29n09wh8JujVtX?usp=sharing
Bluetooth-App (Android):
https://drive.google.com/file/d/1VkqUj50UKesQP7QZY3ZWnT9a0iyax6rt/view?usp=sharing
Kostenloser Versand ab China-Lager: 30–40 Tage Lieferzeit
Materialien
Materialien
Lithiumionenphosphat, Aluminium
Garantie
Garantie
3 Jahre Garantie
You may want to know about this
Q: Which BMS is in the 48V battery box?
A: We use the 200A Bluetooth BMS in the box with CAN/RS485 communication.
Q: Is this the completed battery pack?Do I need anything else to run the battery?
A: Yes, we will test them before shipping,make sure the battery pack is able to work.we will prepare everything for you.
Q: If I want to build a 60kwh server rack system, what should I choose?
A: If you choose 48V 310Ah battery system(each one is 15Kwh),then you need 4 in total for yourr 60kwh power storage.
Q: What certifications do you have?
A: Our battery box has CE,and the battery cells have CE,UL, and MSDS.
Q: How do I set up the system?
A: The battery system can be connected to a PC, and you can set and manage the whole system on your computer.
Q: I have my own logo, can I print my logo on the battery?
A: Yes, we accept logo customization, but need large quantities (>10 sets). If you like any samples, please feel free to contact us:howard@eelbattery.com
16S 200A BMS-Platine
Our DIY battery box comes with the 16S 200A BMS with intelligent lithium lifepo4 battery module CANBUS/RS48 battery protection board. Cell BMS LCD Monitoring System
EEL Pallet with wheels
This battery case is for 48V (51.2V) battery system. We find that some customers want to build a large battery system but don't have a quality case. Here we have the full metal case for DIY server rack stackable batteries.
