EEL 48V 16S DIY Vertical JK Box DIY Battery Kits with JK Inverter BMS and Wheels

$529.00 USD

Sale Sold out

Taxes included.

LCD display with 3.2 inch display with 4.3 inch touch display

BMS type JK 48V 150A JK 48V 200A

Busbars M6 2 hole busbar M6 4 hole busbar

Quantity

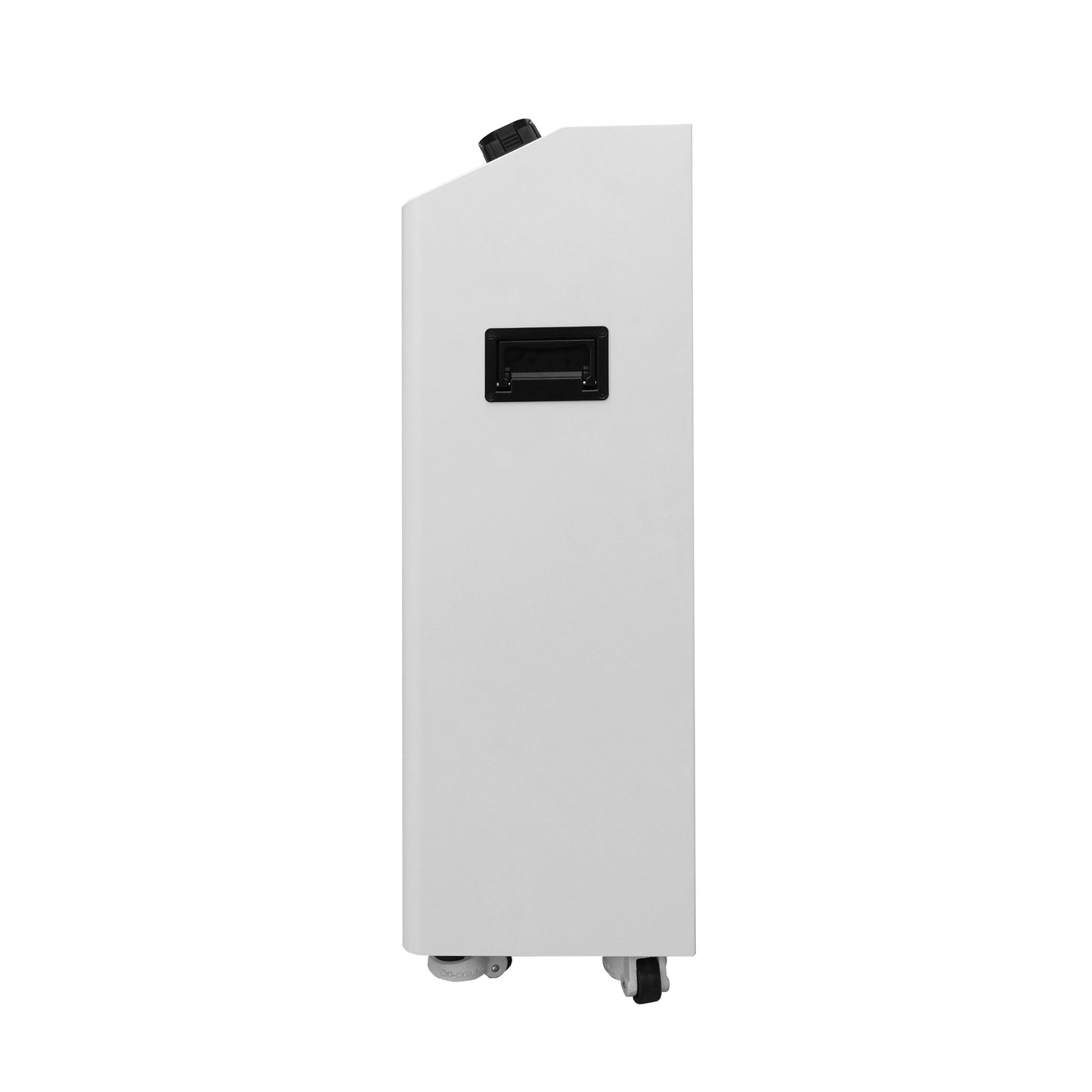

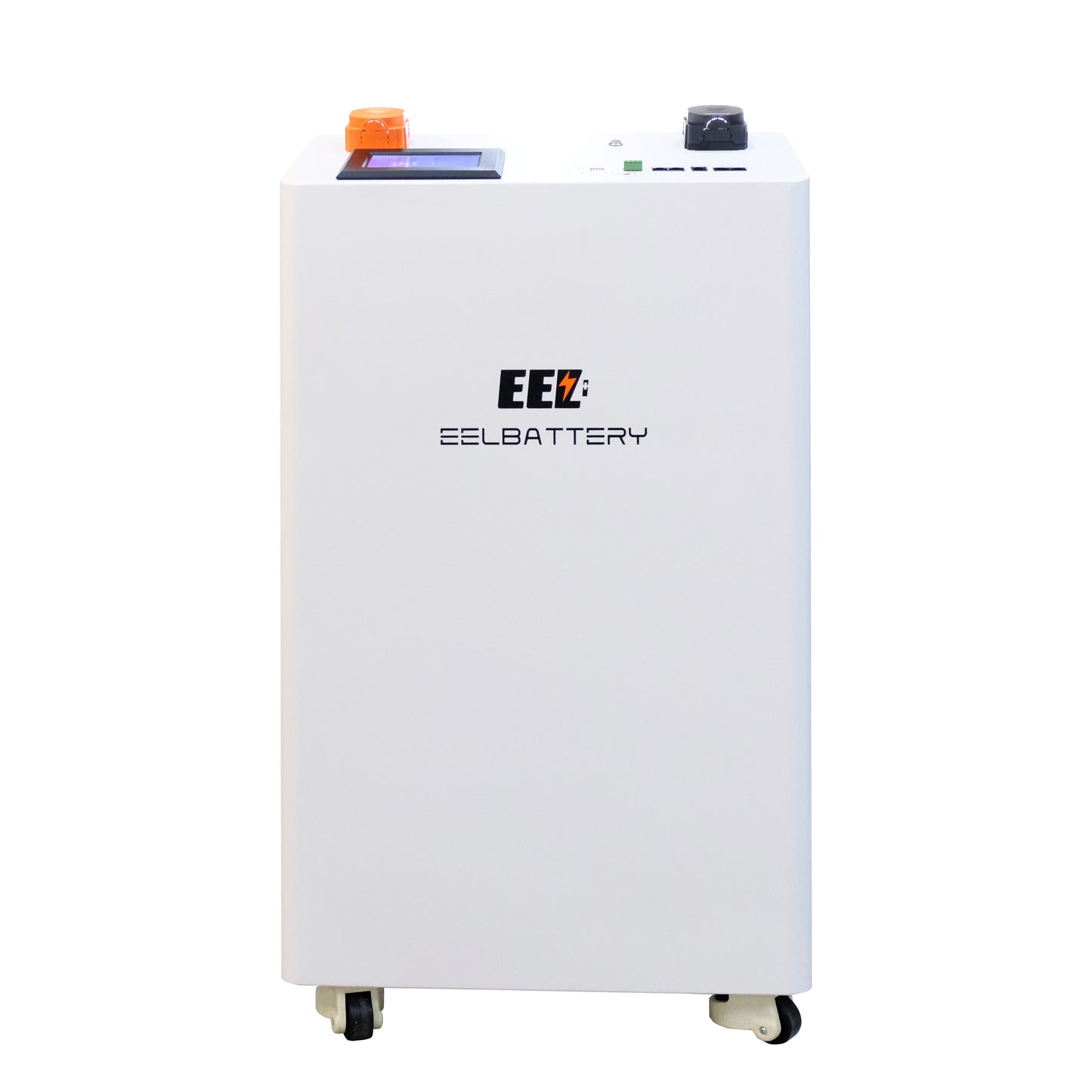

Specification(Battery Vertical JK Box with wheels)

Battery Type:230/280/302/MB30/MB31/330Ah Cells
Material: Stainless Steel
Communication: CANBUS/RS485
BMS: 48V 16S 150/200A JK BMS
Nominal Voltage:51.2V
Active Balance Current:2A
Warranty:3 Years
OEM/ODM: Available
Weight:29kg
Parallel Type:up to 14 batteries

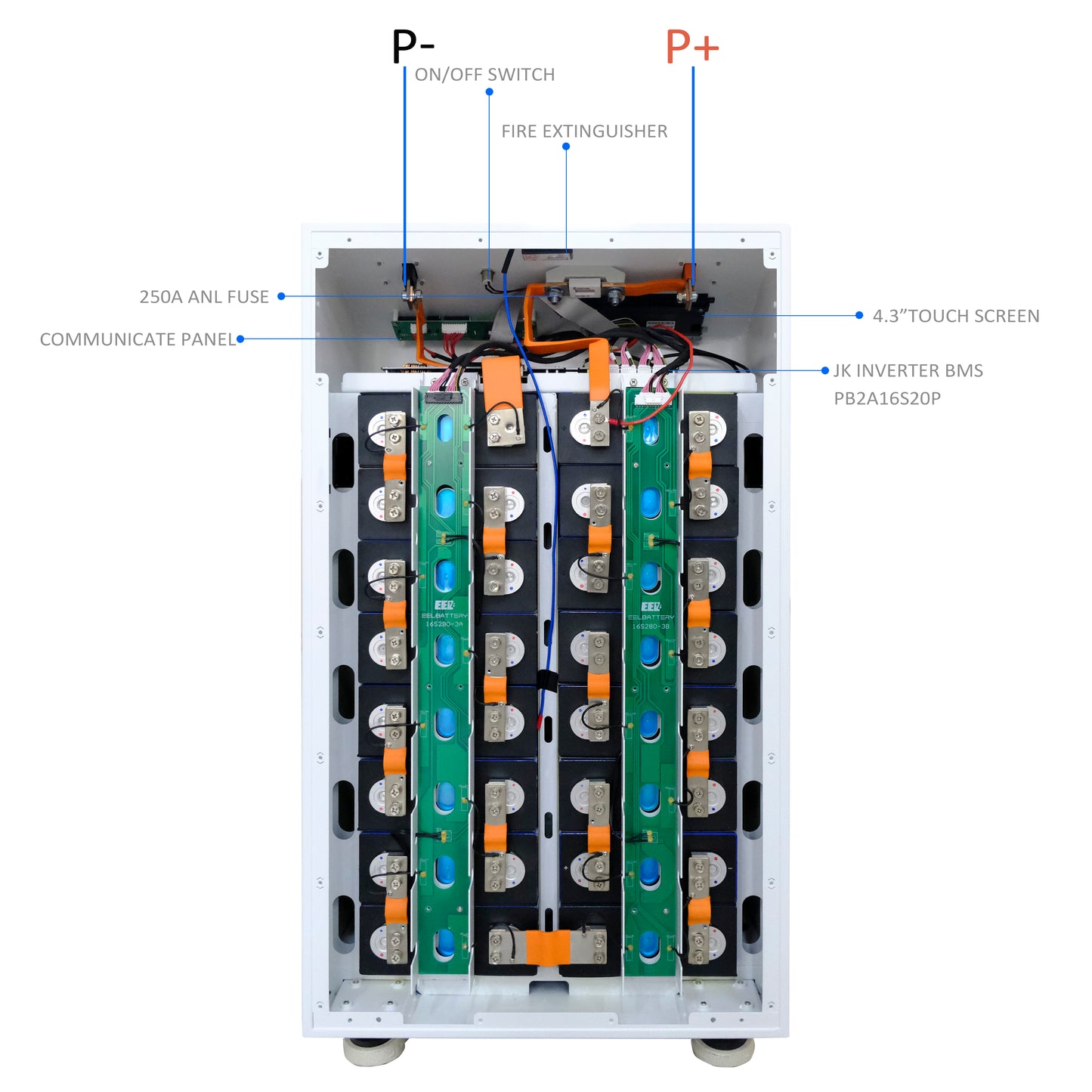

Parts List(does not come with the battery cells)

1 * Battery Case (front case,1*back Bracket)

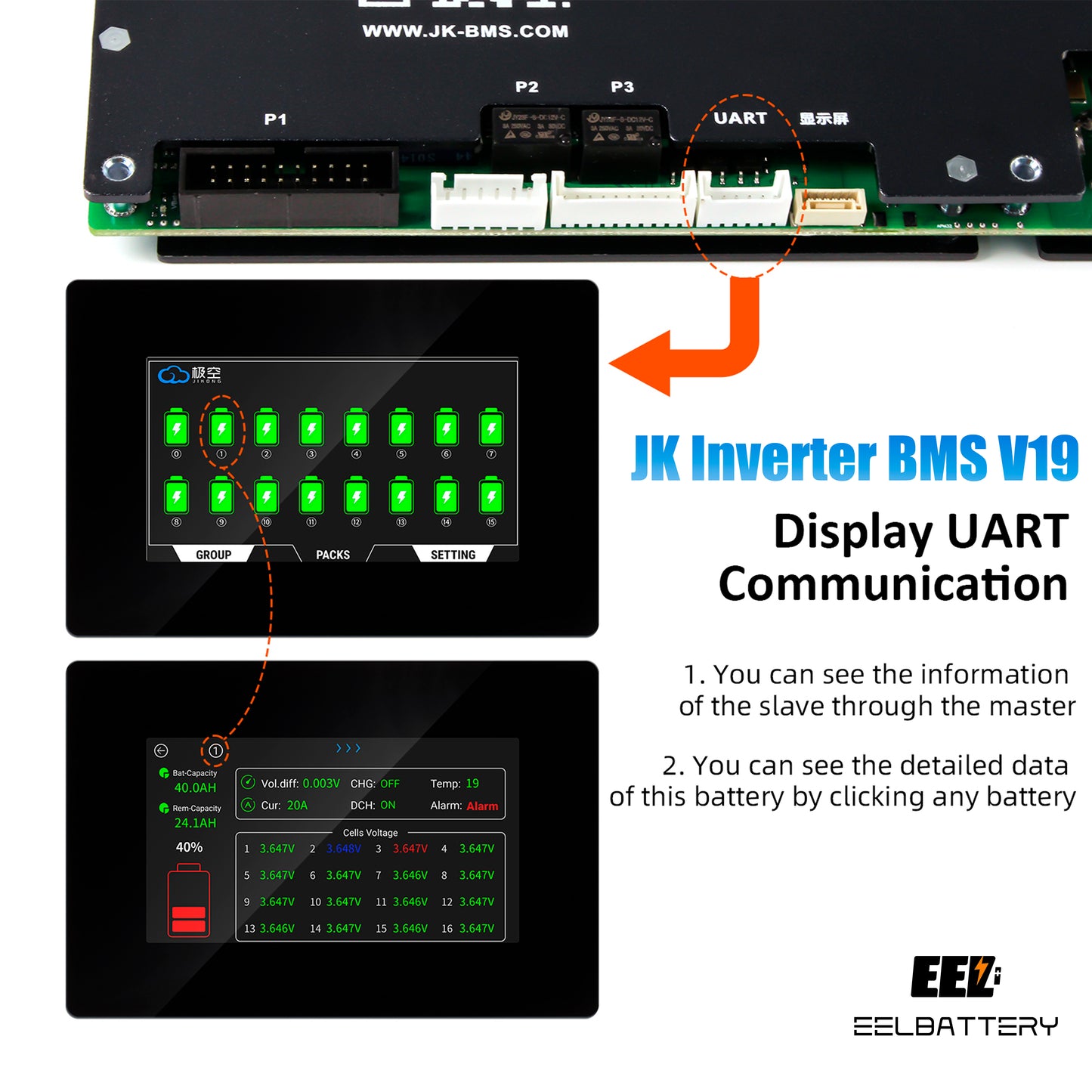

1* JK LCD display with on/off switch
16 * Epoxy board(Between cell and the case)
2 * PCB Board(with sheet copper wires) for BMS and Cells Connection+2*matched EVA Tape
2 * Handles+4*wheels
1 * 48V 16S JK inverter BMS+2*BMS wires+adapter
1 * LCD Screen+1*LCD Screen wire+4 * Button Cap
2 * Special Battery Terminals (P+ Terminal and P- Terminal)
3* Long Flexible busbars (BMS connection)
15 * Flexible busbars (Cell connection)
16 * EVA Tape (Between cells)
Other Small Accessories

DownLoad the software:

https://drive.google.com/drive/folders/1BdpkjrWTS8rM7Ph8gk29n09wh8JujVtX?usp=sharing

Bluetooth App(Android):

https://drive.google.com/file/d/1VkqUj50UKesQP7QZY3ZWnT9a0iyax6rt/view?usp=sharing

Free shipping from China with 40-50 working days delivery.

Materials

lithium ion phosphate,aluminum

Shipping & Returns

From overseas warehouse:5-7 days.

From China:30-40 working days

Warranty

3-Year Warranty

View full details

You may want to know about this

Q&A:

Q： What BMS is in the 48V battery box?

A: We use the 48V 16SJK-PB2A16S15P/JK-PB2A16S20P BMS in the box with CAN/RS485 Communications.

Q: Can I only take the battery box without BMS?

A: Yes, we can remove this price for you if you want to place the order.

Q: If I want to build a 48V server rack system, what should I choose?

A: It depends on how much capacity you want, our battery box can be stacked up to 15 sets.

Q: Can I buy the completed 48V server rack battery?

A: Sure, because our battery box does not include the cells, please leave a message to us if you want the completed battery system.

Q: How to set up the system?

A: The battery system can be connected to PC, and you can set and manage the whole system on your computer.

Q: If the cells are put in this way, will the bottom cells stand for the top cells' weight?

A: Please do not worry about that, the cells are recommended to compress with 300kgf, and the weight of cells is less than 300kgf.

Q: I have my own logo, can I print my logo in the battery pack?

A: Yes, we accept customizing the logo, but need a large amount(>10 sets), if you like a sample, welcome to contact us.

eason@eelbattery.com

Off-Grid Garage-Andy Review

16S 48V 150/200A JK Smart BMS

Our DIY battery box comes with the 16S 150/200A JK BMS, smart lithium lifepo4 battery module CANBUS/RS48 battery protection board Cell BMS and LCD monitoring system

Check the details

EEL Adjustable wheels

The wheels can stand 1000kg weight,we notice that some customers want to build a large battery system, but do not have a quality case, here we have the full metal case for DIY server rack standing battery system.

Battery Pallet

Une batterie vraiment efficace !

J'hésitais beaucoup entre une batterie déjà faite, ou une à faire soi-même (DIY) et vu les conseils très claire et pro du service clients de chez EEL, et le rapport qualité prix très attractif de c'est, j'ai choisi cette méthode. Les pièces sont arrivées en parfait état et rapidement, j'ai su monter ça très facilement avec le guide vidéo et pdf. La batterie est maintenant fonctionnel. Très content d'être passé par vous.

I like it!

I have the DIY battery box with the JK BMS. I wish it would have come with assembly instructions. It took longer to assemble than it should have because there was zero instructions. I found a video on You Tube, but it wasn't super clear. I like the build quality - all the screw holes lined up. I decided not to peel the backing off the neoprene sheets, I just put them between the cells with the epoxy sheet, just in case they made it too think. Whatever you do, be sure to attach the red wire to the BMS before you install it in the case or you'll be taking it all apart again. I do have 2 parts left over that I can't figure out what to do with are 2 beige metal pieces that look like handles or something to wrap wires around (like on a vacuum cleaner)
