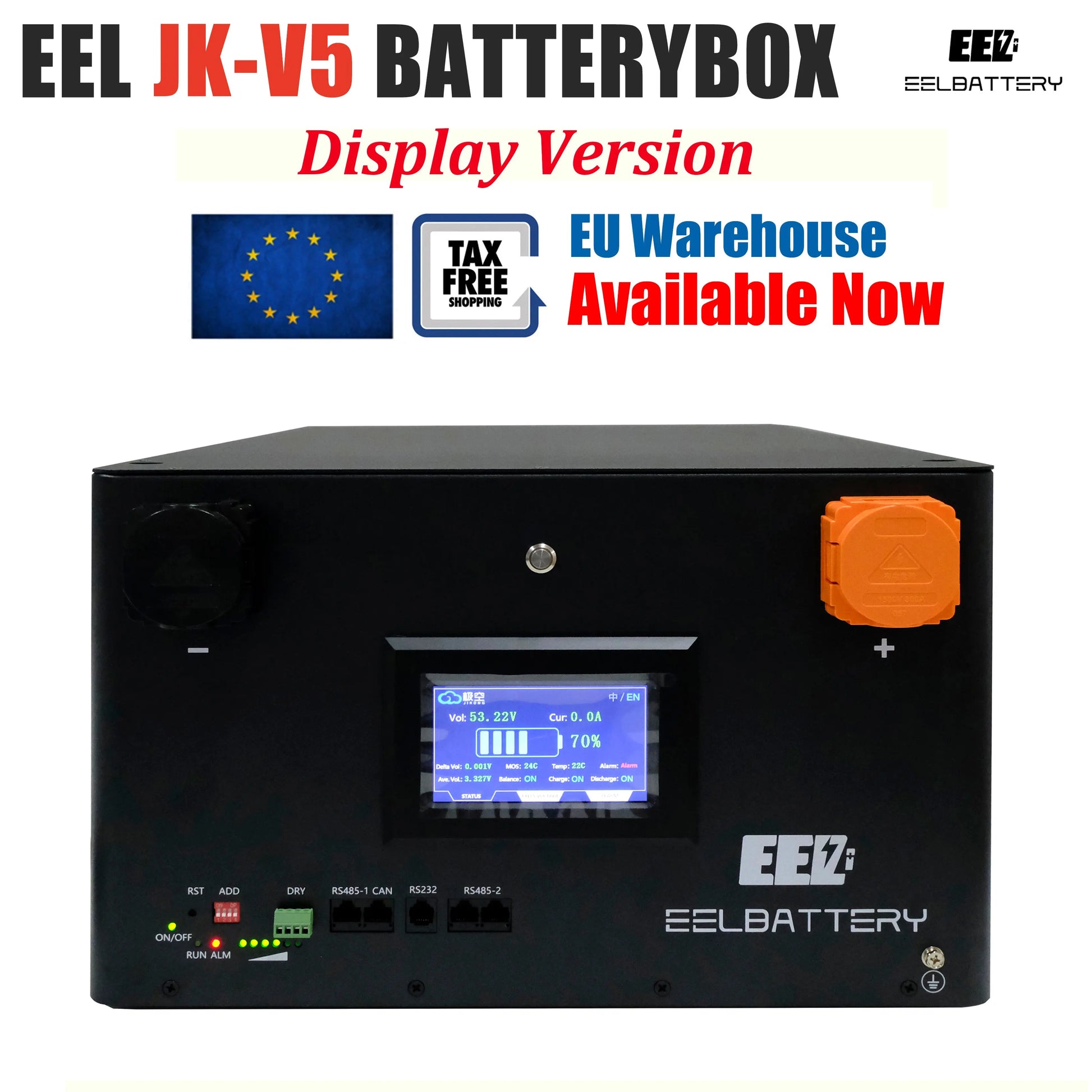

EEL 48V 16S Server Rack Battery V5-JK Box DIY Stackable Kits with JK BMS Box Energy Storage EU Stock

$619.99 USD

Sale Sold out

Taxes included.

Display Screen with 4.3 inch display

Color White Black

busbar type M6 2-hole busbars

Quantity

Specification(V5-JK BMS box)

Battery Type:280-330Ah Cells
Material: Stainless&Steel
Communication: CANBUS and RS485(accept both)
BMS: 48V 16S JK-PB2A16S20P
Nominal Voltage:51.2V
Current:200A
Warranty:5 Years
Battery Pack Type: Stackable
OEM/ODM: Available
Weight:29kg
Size:415*700*263mm
Shipping from: Poland warehouse

EEL V5-JK box can also be compatible with the EEL V4-JK box

Parts List(does not come with the battery cells)

1 * V5 Battery Case (Bottom case, Front Bracket, 2*Top Bracket, Front Panel, Top cover)
16 * Epoxy board(Between cell and the case)
2 * PCB Board(with sheet copper wires) for BMS and Cells Connection+2*matched EVA Tape

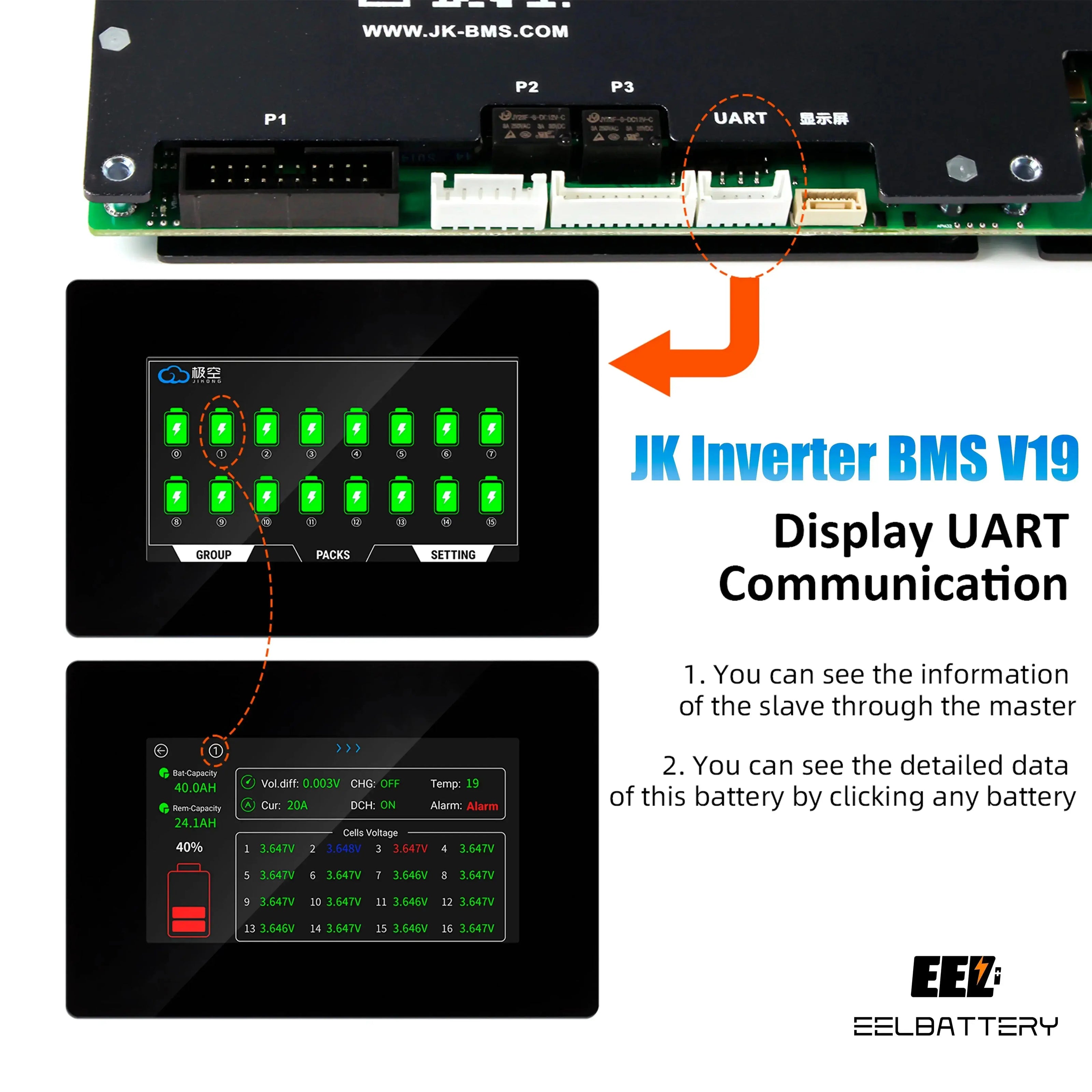

1* JK 4.3inch display screen
1 * Weak electric switch
1 * 48V 16S JK BMS(JK-PB2A16S20P)+2*BMS wires
1 * CNL 250A fuse
2* Upgraded Battery Terminals (P+ Terminal and P- Terminal)
3* Long Flexible busbars (BMS connection)
15 * Flexible busbars (Cell connection)
4 * Handle
4 * Upper and Lower Latch lock
10* EVA Tape+Bar tape (Between cells)
Other Small Accessories

JK BMS Box software:

https://drive.google.com/drive/folders/1T7Amp5mqtl4twecgZRhJCK4hoWncbNDE

UPS/DHL DDP shipping to

PL,CZ,SK,AT,DE,HU,BE,BG,DK,EE,FR,NL,LT,LV,LU,MC,

RO,HR,FL,ES,SI,SE,IT,GR,IE,PT

Material

Lithiumionenphosphat, Aluminium

Warranty

3 Jahre Garantie

View full details

You may want to know about this

Questions and answers:

Q: Which BMS is in the 48V battery box?
A: We use the 150/200A JK BMS in the box with CAN/RS485 communication.

Q: Can I take only the battery box without BMS?
A: Yes, the BMS cost 90usd/pcs, we can remove this price for you if you want to place the order.

Q: If I want to build a 48V server rack system, what should I choose? A: It depends on how much capacity you want, our battery box can be stacked up to 15 sets.

Q: Can I buy the finished 48v server rack battery?
A: Sure, since our battery box doesn't include the cells, please leave us a message if you want the finished battery system.

Q: How do I set up the system?
A: The battery system can be connected to the JK App, and you can set and manage the whole system on your phone.

Q: I have my own logo, can I print my logo on the battery?
A: Yes, we accept logo customization, but need large quantities (>10 sets). If you like any samples, please feel free to contact us:howard@eelbattery.com

Review By Off-Grid Garage

16S 200A JK BMS

Our DIY battery box comes with the 16S JK New BMS with intelligent lithium lifepo4 battery module CANBUS/RS48 battery protection board. Cell BMS LCD Monitoring System

Check for more details

EEL Pallet with wheels

This battery case is for 48V (51.2V) battery system. We find that some customers want to build a large battery system but don't have a quality case. Here we have the full metal case for DIY server rack stackable batteries.
