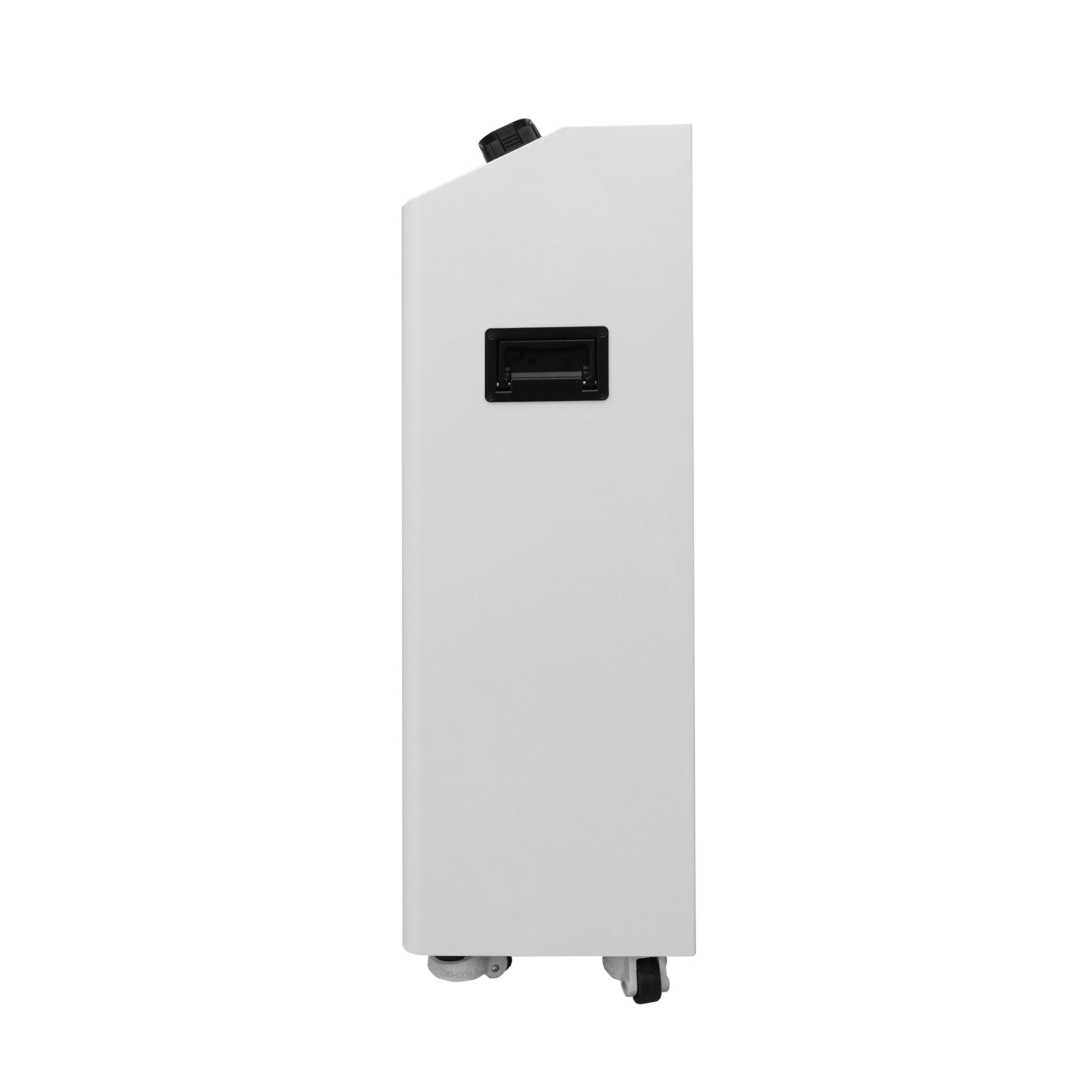

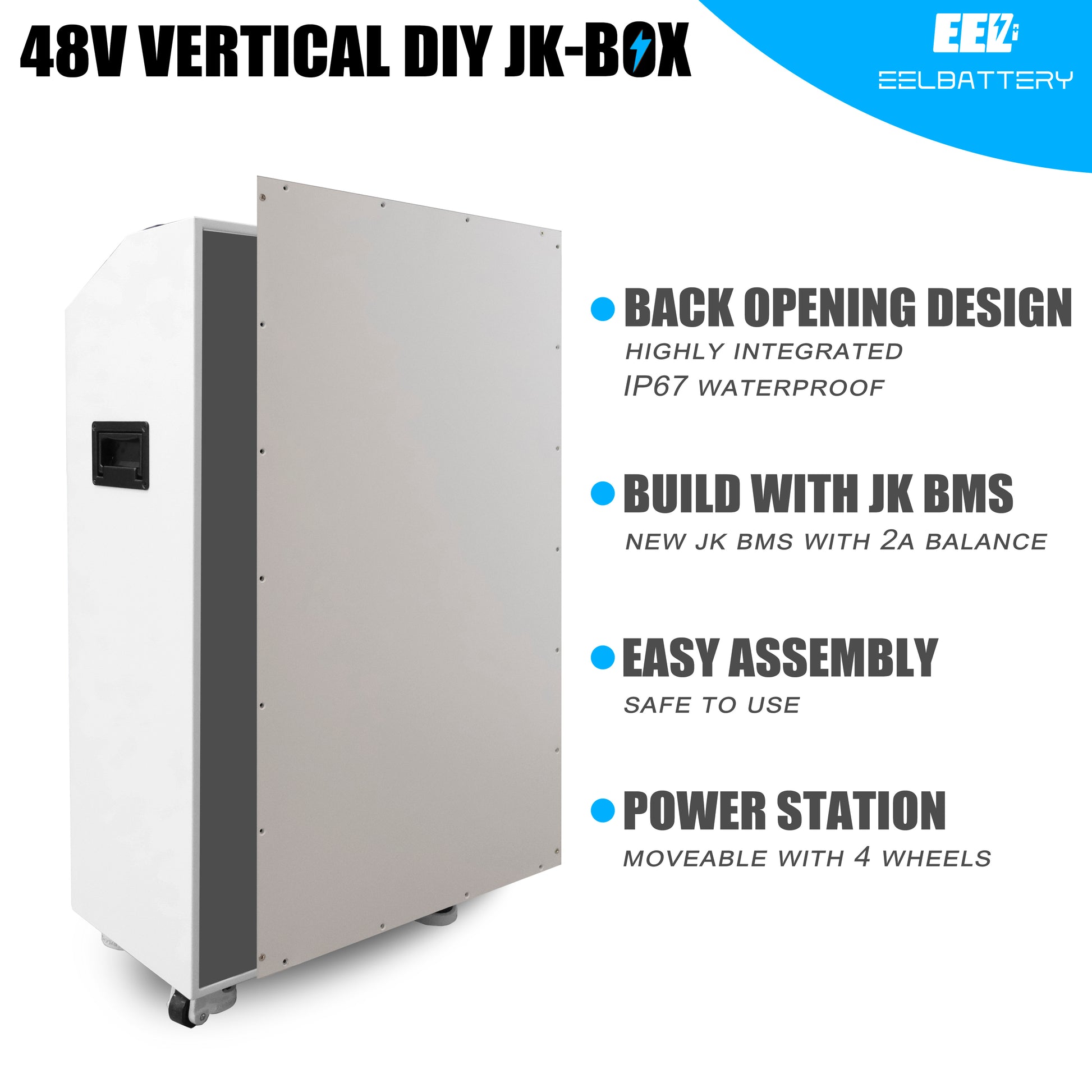

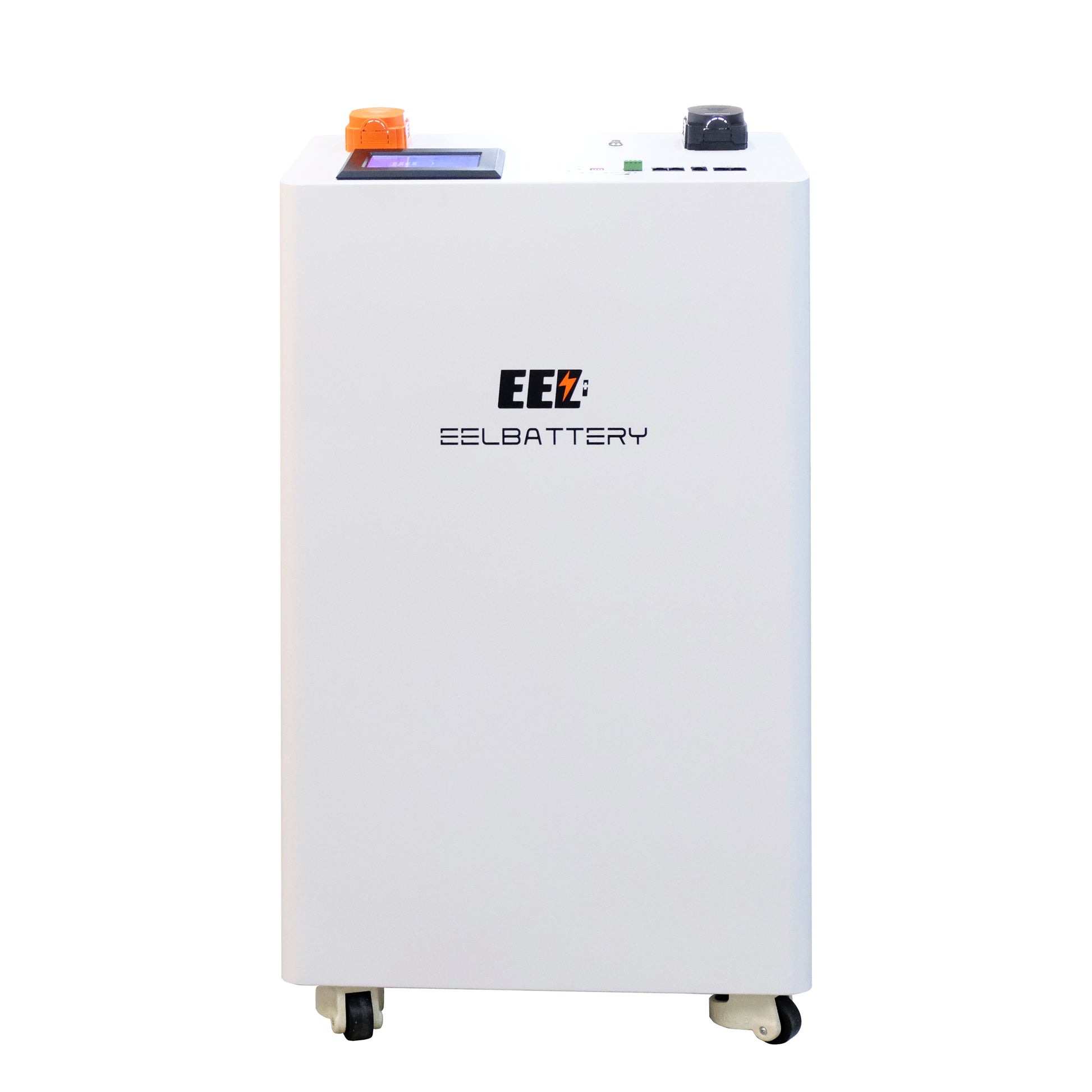

EEL 48V 16S DIY Vertical Battery Box DIY Kits with JK Inverter BMS and Wheels
Couldn't load pickup availability
Specification(Battery JK-Box with wheels)
Battery Type:For 280/302Ah Cell
Material: Stainless Steel
Communication: CANBUS/RS485
BMS: 48V 16S 150/200A JK BMS
Nominal Voltage:51.2V
Active Balance Current:2A
Warranty:3 Years
OEM/ODM: Available
Weight:29kg
Parallel Type:up to 14 batteries

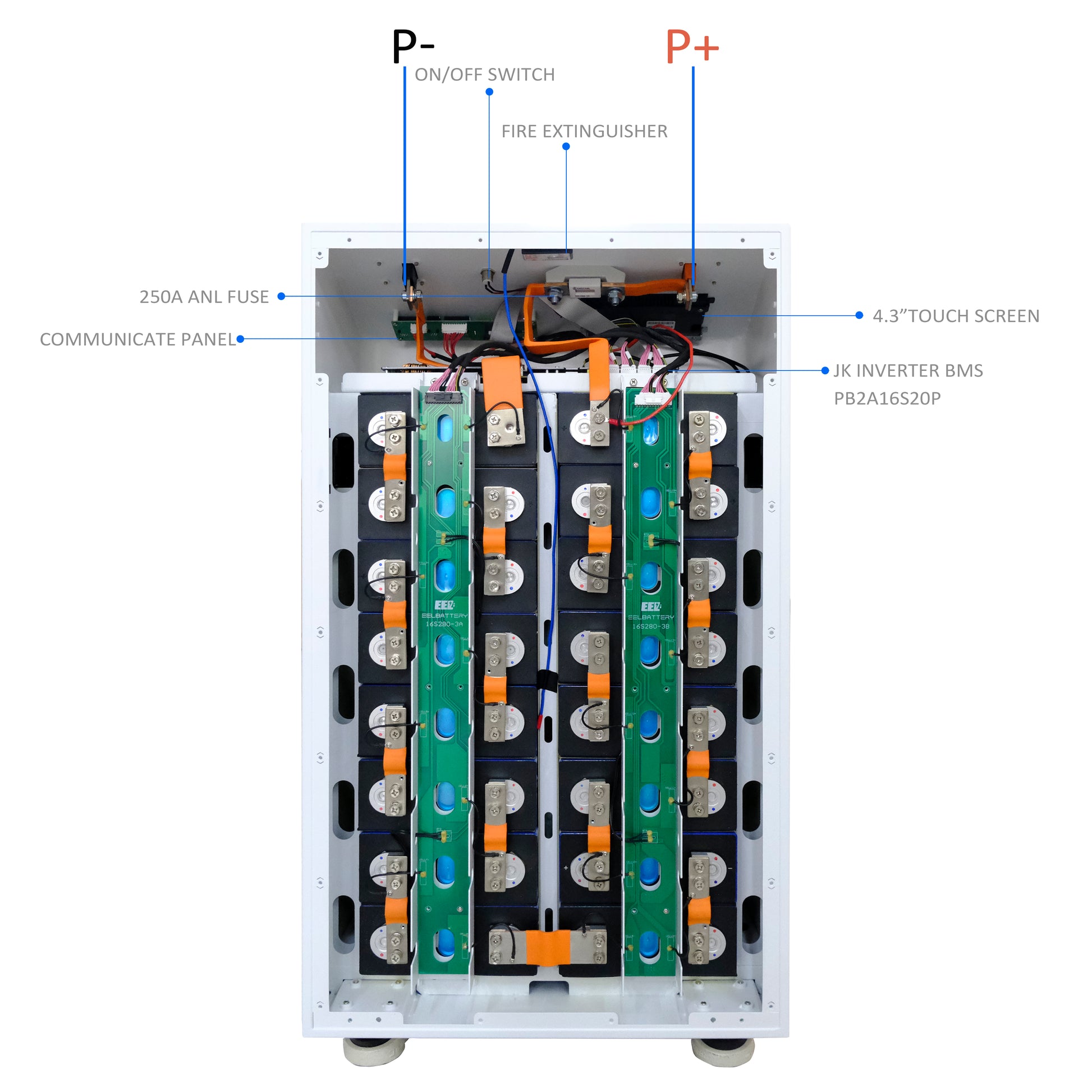

Parts List(does not come with the battery cells)
1 * Battery Case (front case,1*back Bracket)
1* JK LCD display with on/off switch
16 * Epoxy board(Between cell and the case)
2 * PCB Board(with sheet copper wires) for BMS and Cells Connection+2*matched EVA Tape
2 * Handles+4*wheels
1 * 48V 16S JK inverter BMS+2*BMS wires+adapter
1 * LCD Screen+1*LCD Screen wire+4 * Button Cap
2 * Special Battery Terminals (P+ Terminal and P- Terminal)
3* Long Flexible busbars (BMS connection)
15 * Flexible busbars (Cell connection)
16 * EVA Tape (Between cells)
Other Small Accessories
*If you want the double-hole busbars,please leave a note when placing the order.
DownLoad the software:
https://drive.google.com/drive/folders/1BdpkjrWTS8rM7Ph8gk29n09wh8JujVtX?usp=sharing
Bluetooth App(Android):
https://drive.google.com/file/d/1VkqUj50UKesQP7QZY3ZWnT9a0iyax6rt/view?usp=sharing
Free shipping from China with 40 working days delivery.
Materials
Materials
lithium ion phosphate,aluminum
Shipping & Returns
Shipping & Returns
From overseas warehouse:5-7 days.
From China:30-40 working days
Warranty
Warranty
3-Year Warranty
You may want to know about this
Q&A:
Q： What BMS is in the 48V battery box?
A: We use the 48V 16SJK-PB2A16S15P/JK-PB2A16S20P BMS in the box with CAN/RS485 Communications.
Q: Can I only take the battery box without BMS?
A: Yes, we can remove this price for you if you want to place the order.
Q: If I want to build a 48V server rack system, what should I choose?
A: It depends on how much capacity you want, our battery box can be stacked up to 15 sets.
Q: Can I buy the completed 48V server rack battery?
A: Sure, because our battery box does not include the cells, please leave a message to us if you want the completed battery system.
Q: How to set up the system?
A: The battery system can be connected to PC, and you can set and manage the whole system on your computer.
Q: If the cells are put in this way, will the bottom cells stand for the top cells' weight?
A: Please do not worry about that, the cells are recommended to compress with 300kgf, and the weight of cells is less than 300kgf.
Q: I have my own logo, can I print my logo in the battery pack?
A: Yes, we accept customizing the logo, but need a large amount(>10 sets), if you like a sample, welcome to contact us.
eason@eelbattery.com
Off-Grid Garage-Andy Review
16S 48V 150/200A JK Smart BMS
Our DIY battery box comes with the 16S 150/200A JK BMS, smart lithium lifepo4 battery module CANBUS/RS48 battery protection board Cell BMS and LCD monitoring system
EEL Adjustable wheels
The wheels can stand 1000kg weight,we notice that some customers want to build a large battery system, but do not have a quality case, here we have the full metal case for DIY server rack standing battery system.
