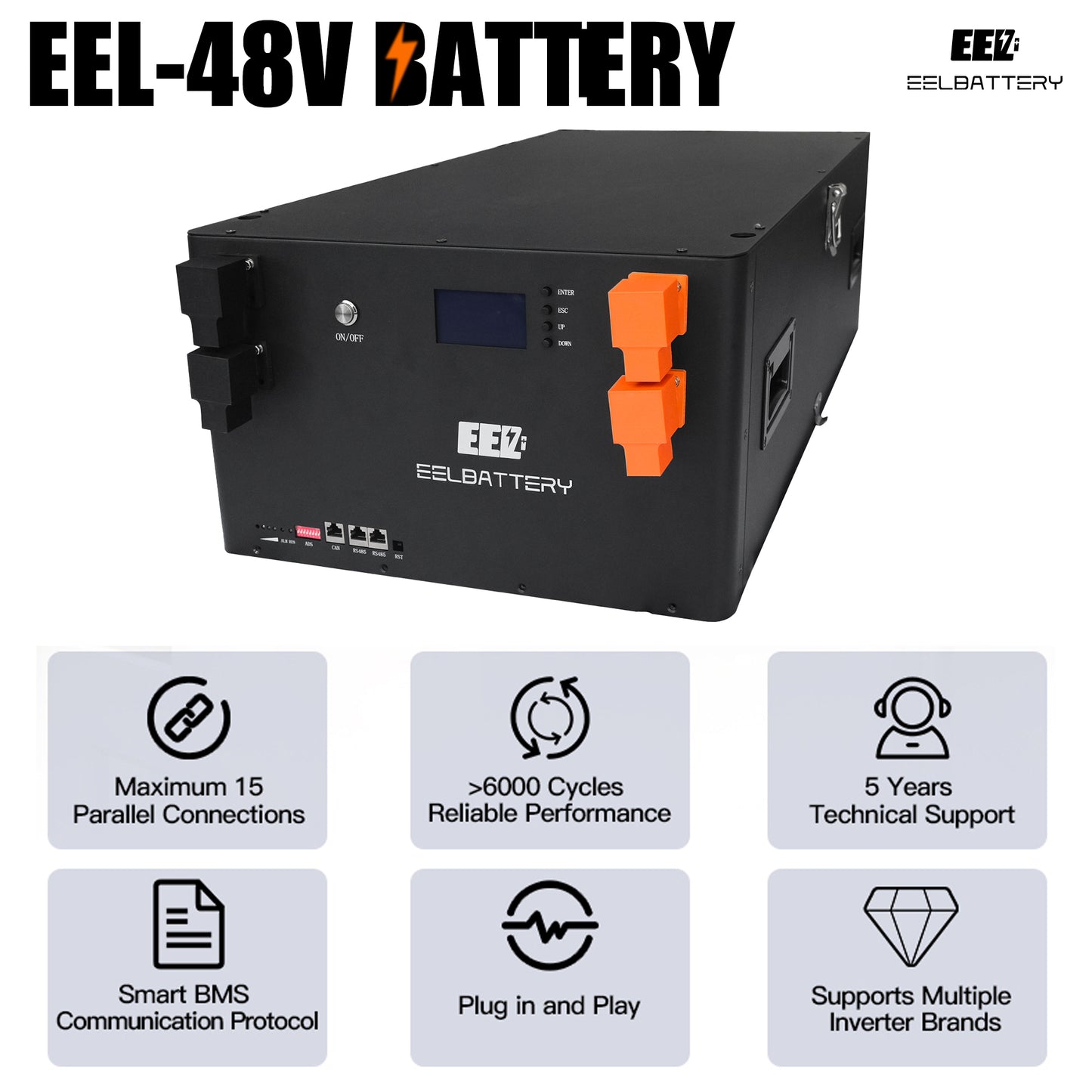

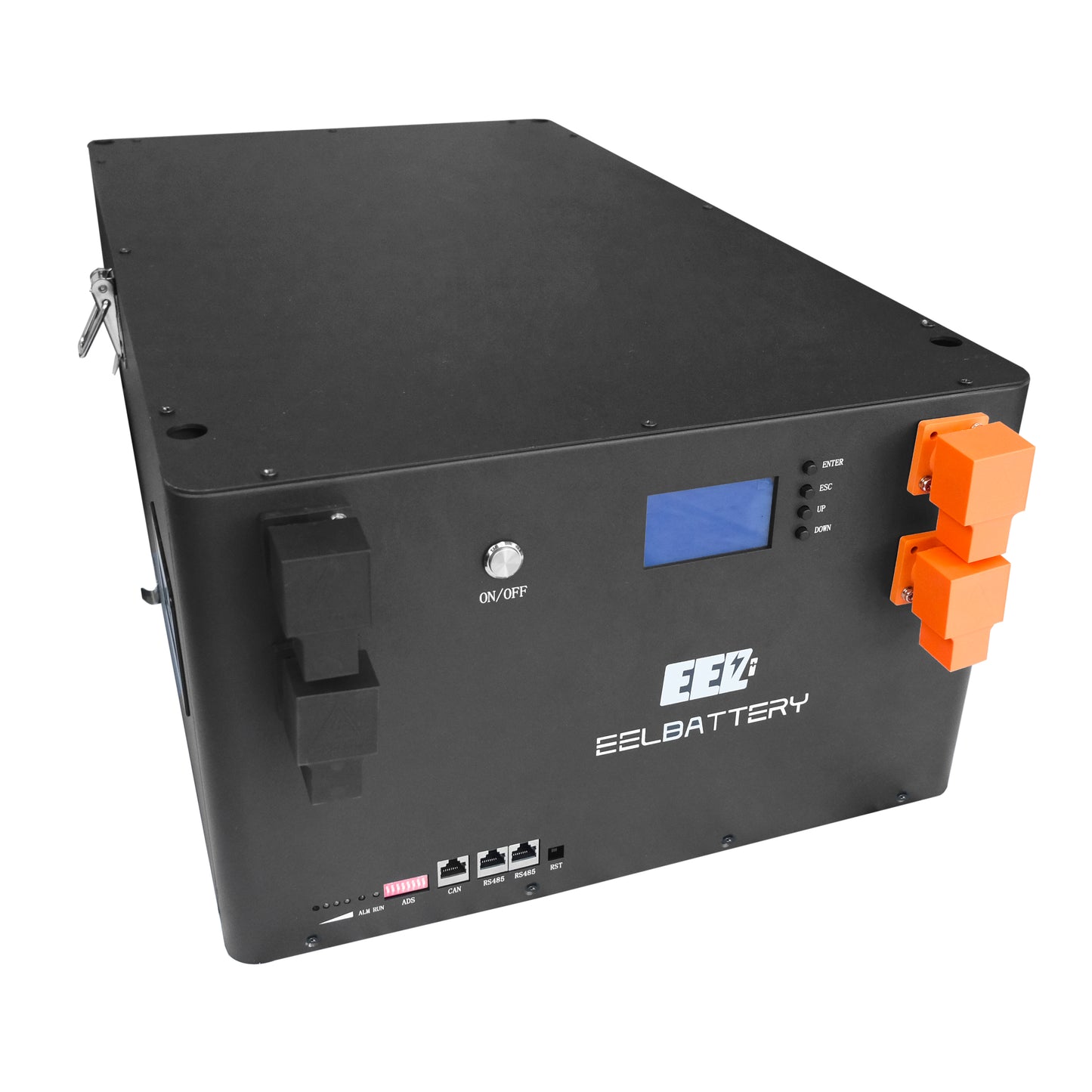

51.2v 15Kwh EEL Server Rack LiFePO4 Battery Pack Home Power Solar Energy Storage System
Couldn't load pickup availability
Specification
Normal Voltage:51.2V
Norminal Capacity:230/280/310Ah

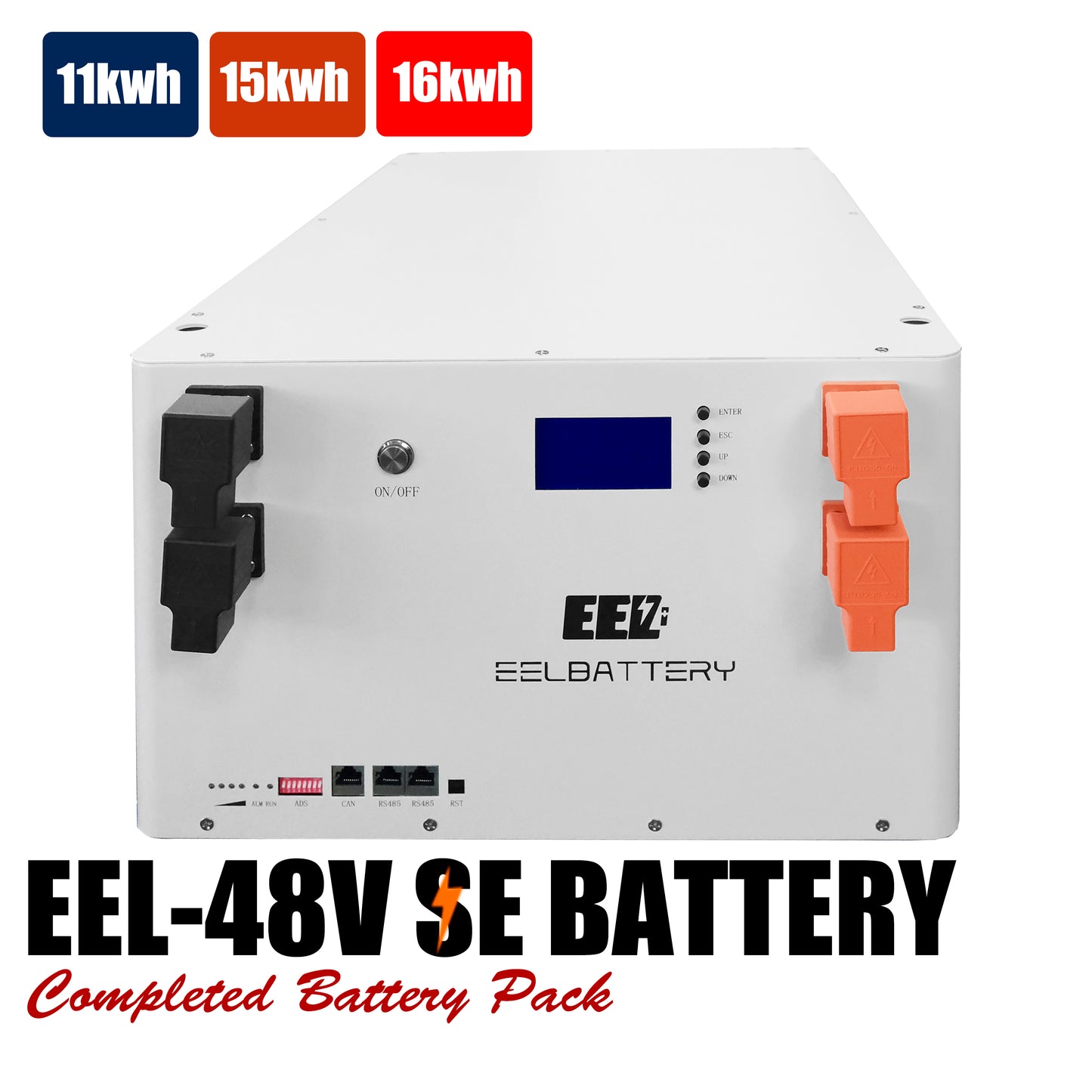

Energy Storage:11/15/16Kwh
Series or Parallel:16S1P

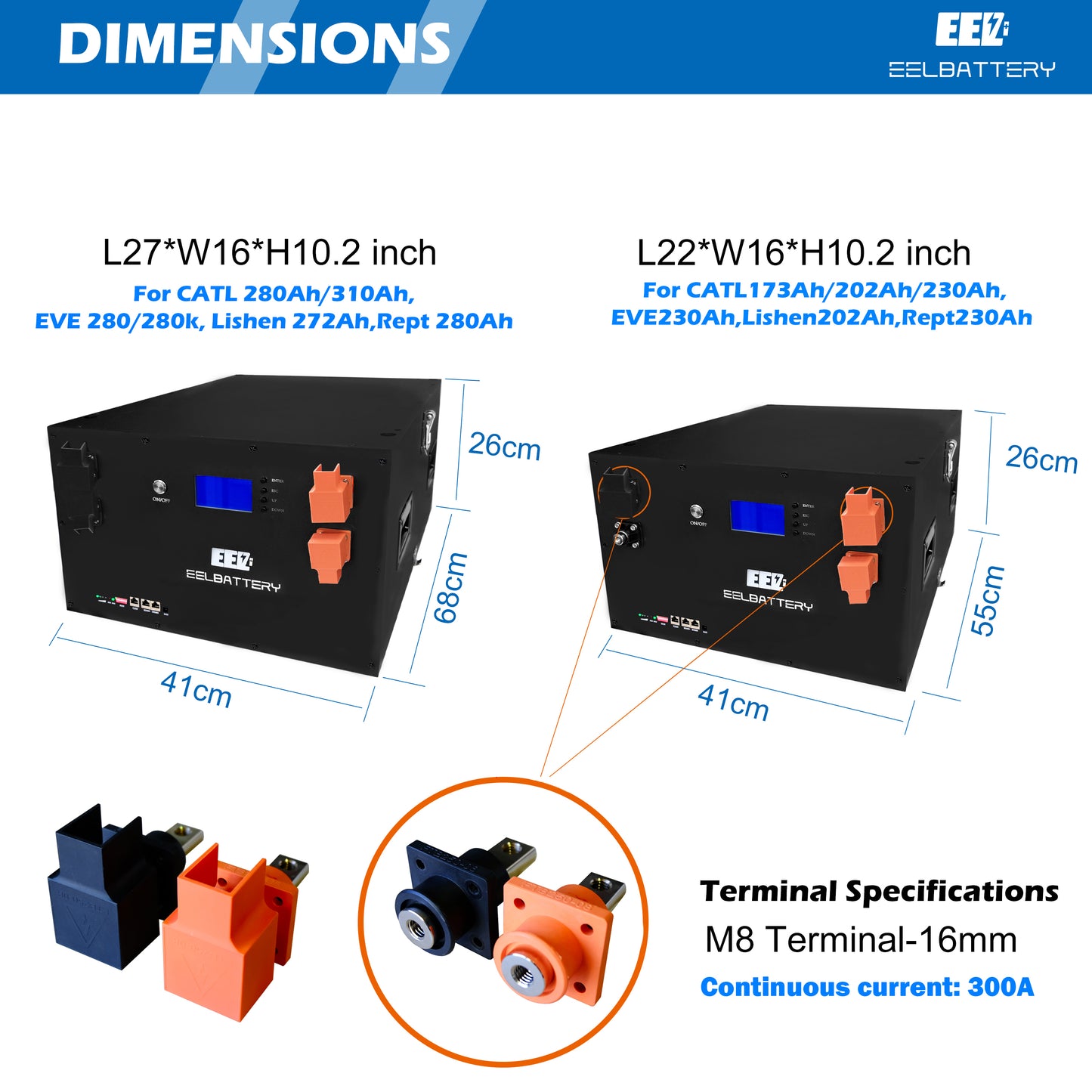

Size:41*68*26 CM
Built-in BMS:16S 200A Bluetooth BMS
Net weight:110/130/140kg
Communication:RS485/CANbus
Material: Lifepo4, Metal, Stainless Steel
Charge Current:100-200A
Maximum Charge Current:200A
Charge Voltage:56-57.6V
BMS Cut-off Voltage:57.6V
Reconnect Voltage:54.6V
Battery Cells inside Grade A CATL/EvE HSEV Power Cells
Stackable Type:up to 15 batteries
Parts List
1 * EEL Battery Pack(Preassembled)
1 * Hard-Wooden Packing Box
*We will test the battery before shipping.
DownLoad the software:
https://drive.google.com/drive/folders/1BdpkjrWTS8rM7Ph8gk29n09wh8JujVtX?usp=sharing
Bluetooth App(Android):
https://drive.google.com/file/d/1VkqUj50UKesQP7QZY3ZWnT9a0iyax6rt/view?usp=sharing
Free shipping from China warehouse:30-40 working days delivery
Materialien
Materialien
Lithiumionenphosphat, Aluminium
Garantie
Garantie
3 Jahre Garantie
You may want to know about this
Q: Which BMS is in the 48V battery box?
A: We use the 200A Bluetooth BMS in the box with CAN/RS485 communication.
Q: Is this the completed battery pack?Do I need anything else to run the battery?
A: Yes, we will test them before shipping,make sure the battery pack is able to work.we will prepare everything for you.
Q: If I want to build a 60kwh server rack system, what should I choose?
A: If you choose 48V 310Ah battery system(each one is 15Kwh),then you need 4 in total for yourr 60kwh power storage.
Q: What certifications do you have?
A: Our battery box has CE,and the battery cells have CE,UL, and MSDS.
Q: How do I set up the system?
A: The battery system can be connected to a PC, and you can set and manage the whole system on your computer.
Q: I have my own logo, can I print my logo on the battery?
A: Yes, we accept logo customization, but need large quantities (>10 sets). If you like any samples, please feel free to contact us:howard@eelbattery.com

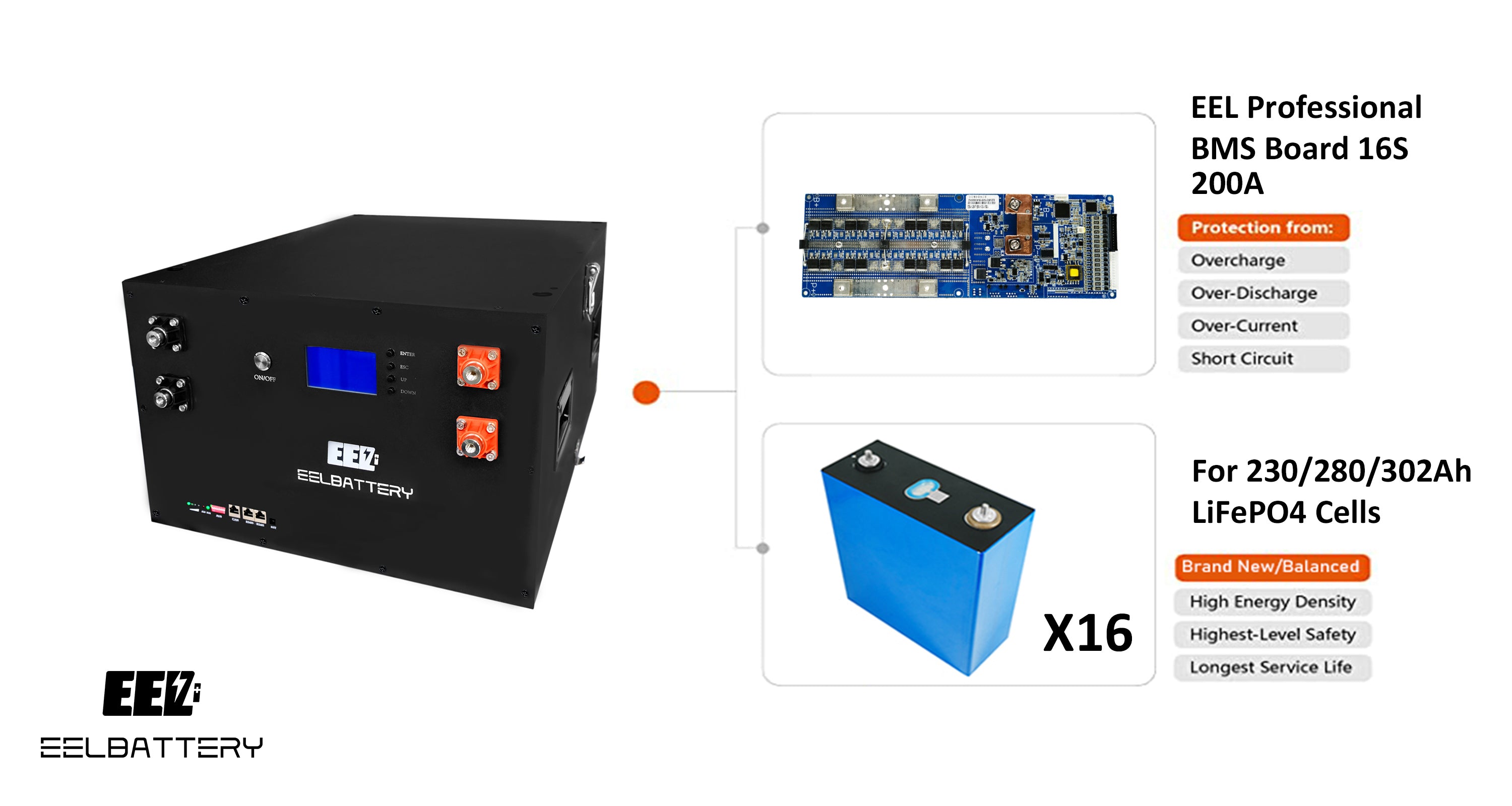

16S 200A BMS-Platine
Our DIY battery box comes with the 16S 200A BMS with intelligent lithium lifepo4 battery module CANBUS/RS48 battery protection board. Cell BMS LCD Monitoring System

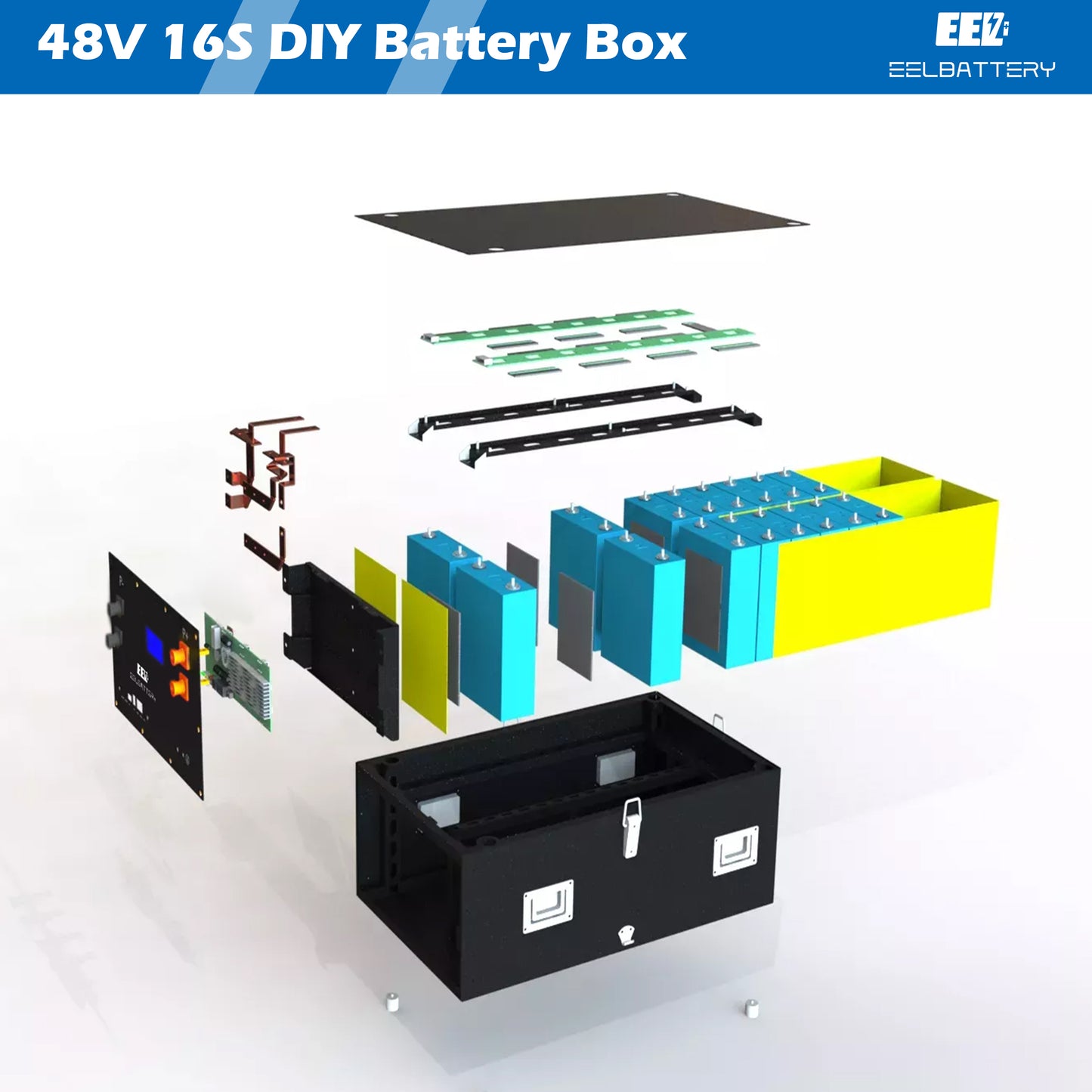

EEL Pallet with wheels
This battery case is for 48V (51.2V) battery system. We find that some customers want to build a large battery system but don't have a quality case. Here we have the full metal case for DIY server rack stackable batteries.
