4PCS 3.2V CALB 314Ah Grade A Lifepo4 Battery Cells Rechargeable for EV Solar Energy
Battery Specifications(CALB 314Ah)
Real capacity:>314Ah per cell
impedance:0.1~0.3mΩ
Nominal voltage:3.2V
Dimensions(L*W*H):(174.4±0.3) x (204.45±0.5) x (71.4±0.3)mm
Weight:5.42±0.16kg
End-of-Discharge Voltage:2.5V
Recommend Constant Current:250A
Working Voltage:2.5-3.65V
Charging Temperature:-5~60°C
Discharging Temperature:-30~60°C
What's in the Box
4*Lifepo4 Battery Cells
4*Flexible Bus Bars&Screws
Well-protected carton box with thick foam,4 units in 1 box.
Fast shipping from China with 40-50 working days delivery.
Materials
Materials
lithium-iron phosphate,aluminum
Shipping & Returns
Shipping & Returns
We will ship the battery from the EU warehouse,usually, it takes 10 days for the delivery.

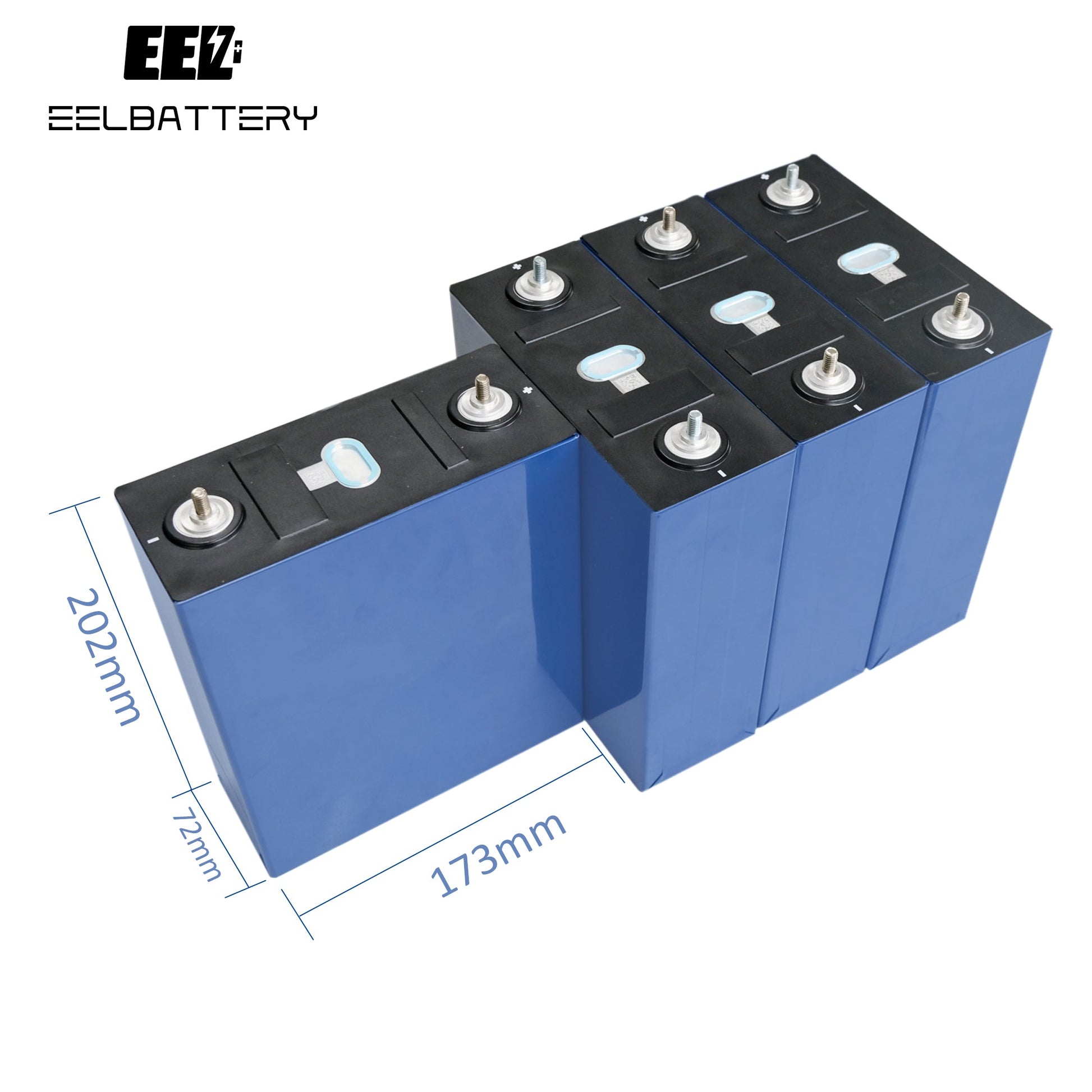

Dimensions
Dimensions
(L*W*H):173*53*203mm
(L*W*H):6.81*2.08*8.01 Inch
Brand New, Tested and Matched. Original CALB Grade A product, laser welded 6mm studs.with CALB original Pack.
Sold in sets of Four. These are matched cells. We test each one and certify each cell voltage. Cells are matched to .05 Volts or better. These are the original 305Ah cells from CALB. All CALB cells must adhere to very strict quality control standards. All genuine CALB cells are laser-etched with a QR Code visible from the top of the cell. The Conservative service life of greater than 4000 cycles. The typical capacity of these new cells is above 310Ah. Nickle Plated Copper Bus bars and nuts are included, free. 4 bus bars per order of cells.
Instruction
For better use of the batteries, we recommend you to do top - balance after receiving the battery cells.You can fully charge the cells to 3.65V then fully discharge them to 2.5V together and keep them still for 1-2 days.
48V DIY V3 Battery Box
If you want to build a 48V 16S Battery System, you can consider our DIY battery box, with all the parts that are needed to build your own system in a very short time!
Please chat with us if you have any questions:)
Suitable for the CALB 305Ah
