EEL BATTERY

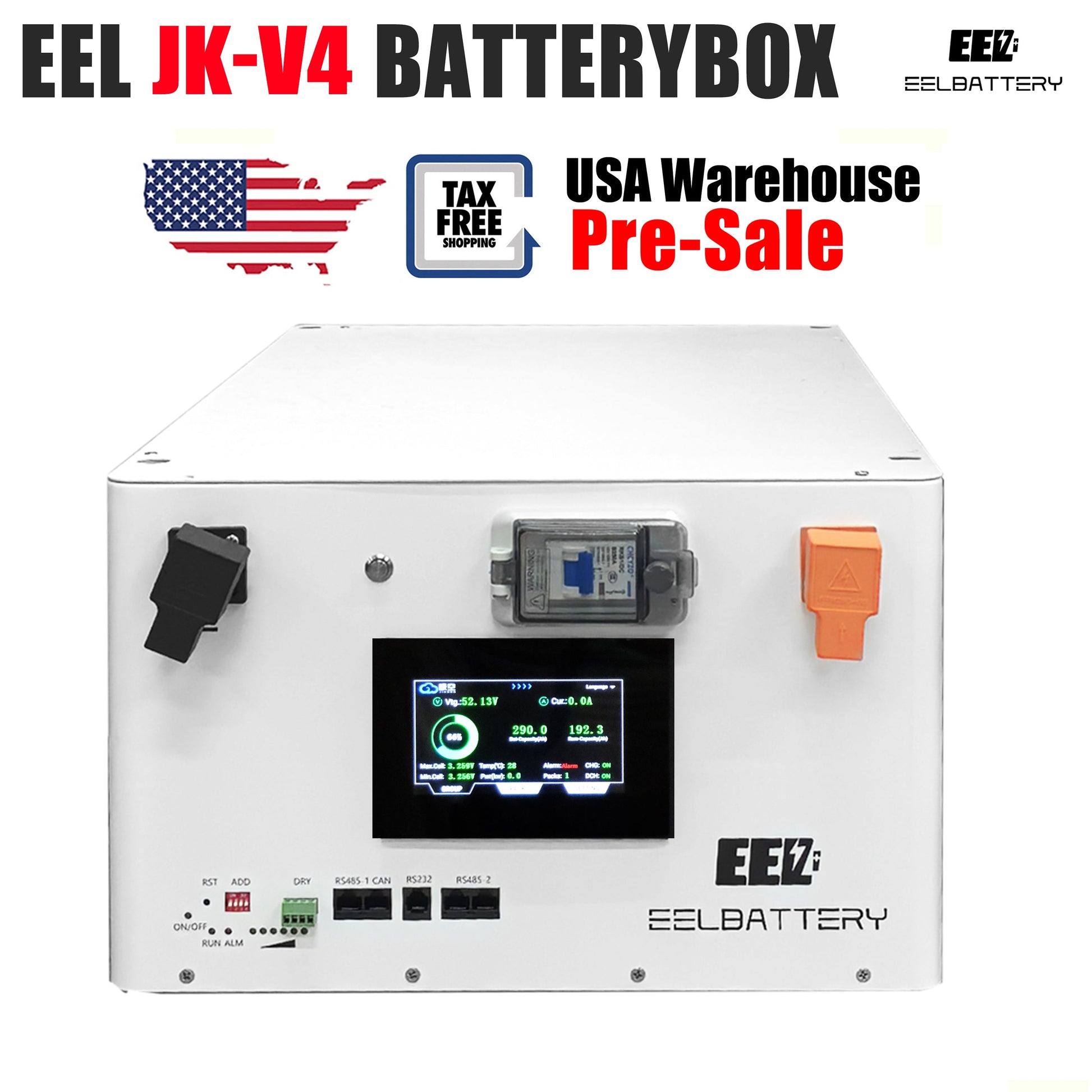

EEL 48V 16S Server Rack Battery V4 Box DIY Stackable Kits with JK V19 BMS Box Energy Storage USA Stock Pre-sale

$589.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color White

BMS V19 200A

busbar type M6 4-hole busbars

Specification(V4-JK BMS box)

Battery Type:230/280/302/MB30/MB31 Cells
Material: Stainless Steel
Communication: CANBUS and RS485(accept both)
BMS: 48V 16S JK-PB2A16S15P/PB2A16S20P
Nominal Voltage:51.2V
Current 200A
Warranty:5 Years
Battery Pack Type: Stackable
OEM/ODM: Available
Weight:29kg
Size:415*700*263mm
Shipping from: Poland warehouse

Parts List(does not come with the battery cells)

1 * V4 Battery Case (Bottom case, Front Bracket, 2*Top Bracket, Front Panel,Top cover)
16 * Epoxy board(Between cell and the case)
2 * PCB Board(with sheet copper wires) for BMS and Cells Connection+2*matched EVA Tape
1 * Weak electric switch
1 * 4.3-inch touch JK display screen
1 * 48V 16S JK BMS(JK-PB2A16S15P)+2*BMS busbars
1 * Circuit Breaker
2 * Battery Terminals (P+ Terminal and P- Terminal)
3 * Long Flexible busbars (BMS connection)
15 * Flexible busbars (Cell connection)
4 * Handle
4 * Upper and Lower Latch lock
10 * EVA Tape (Between cells)
Other Small Accessories/DDP door-to-door shipping

JK BMS Box software:

https://drive.google.com/drive/folders/1T7Amp5mqtl4twecgZRhJCK4hoWncbNDE

Pre-sale:UPS/DHL fast DDP shipping Mainland USA, available on October 10th.

Material

Lithiumionenphosphat, Aluminium

Warranty

3 Jahre Garantie

View full details

You may want to know about this

Questions and answers:

Q: Which BMS is in the 48V battery box?
A: We use the 150/200A JK BMS in the box with CAN/RS485 communication.

Q: Can I take only the battery box without BMS?
A: Yes, the BMS cost 90usd/pcs, we can remove this price for you if you want to place the order.

Q: If I want to build a 48V server rack system, what should I choose? A: It depends on how much capacity you want, our battery box can be stacked up to 15 sets.

Q: Can I buy the finished 48v server rack battery?
A: Sure, since our battery box doesn't include the cells, please leave us a message if you want the finished battery system.

Q: How do I set up the system?
A: The battery system can be connected to the JK App, and you can set and manage the whole system on your phone.

Q: I have my own logo, can I print my logo on the battery?
A: Yes, we accept logo customization, but need large quantities (>10 sets). If you like any samples, please feel free to contact us:howard@eelbattery.com

EEL 48V 16S Server Rack JK Battery Box DIY Kits with 200A V19 BMS Energy Storage Stackable Type EEL BATTERY

Review By Off-Grid Garage

16S 200A JK V19 BMS

Our DIY battery box comes with the 16S JK New BMS with intelligent lithium lifepo4 battery module CANBUS/RS48 battery protection board. Cell BMS LCD Monitoring System

Check for more details

EEL Pallet with wheels

This battery case is for 48V (51.2V) battery system. We find that some customers want to build a large battery system but don't have a quality case. Here we have the full metal case for DIY server rack stackable batteries.

Batteriepalette
